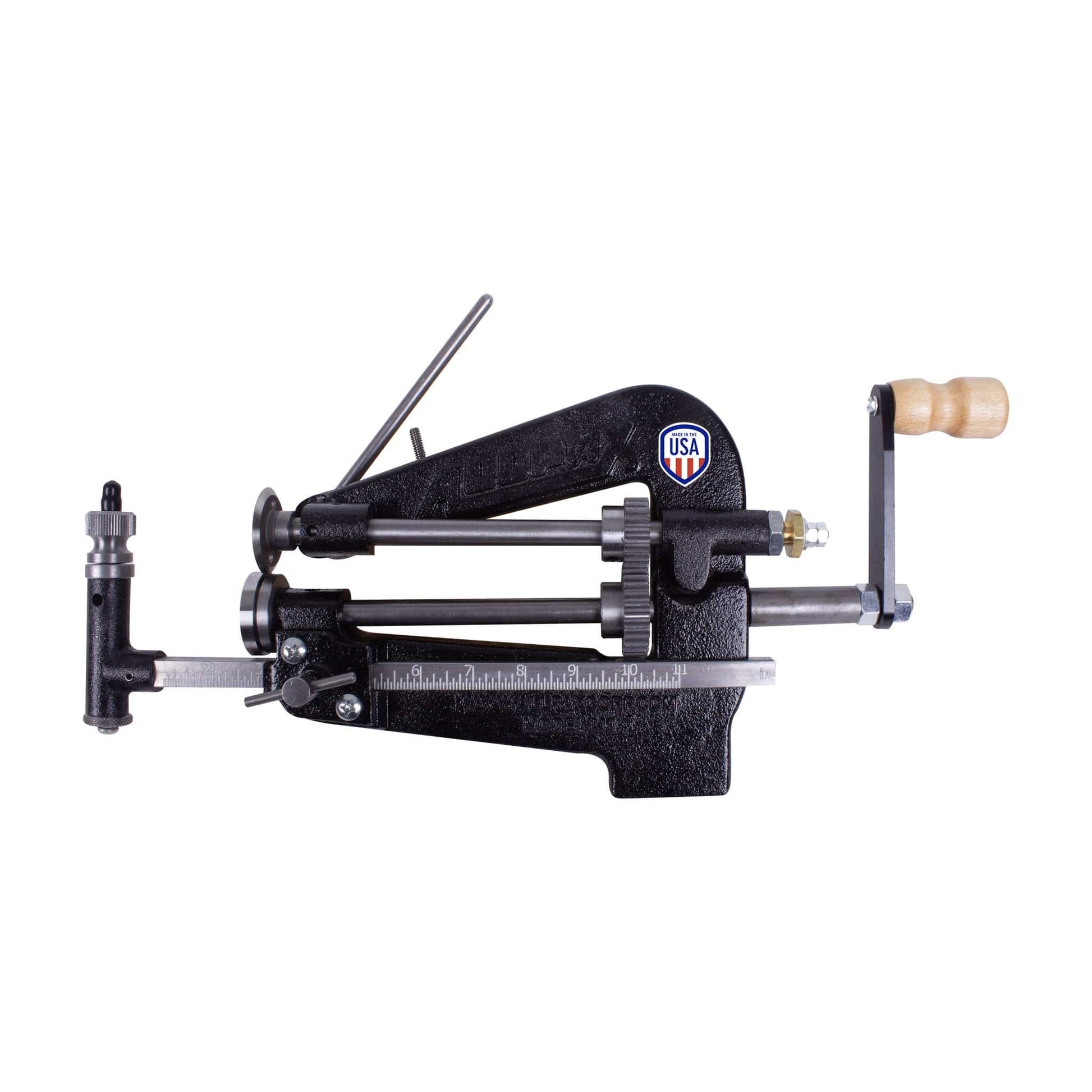

M3 Rotary-Style Standard Gasket Cutter

Name: M3 Rotary-Style Standard Gasket Cutter
Brand: Allpax
SKU: AX7000
Price: 1172.56 USD
Availability: InStock

1 12

Part Number: AX7000

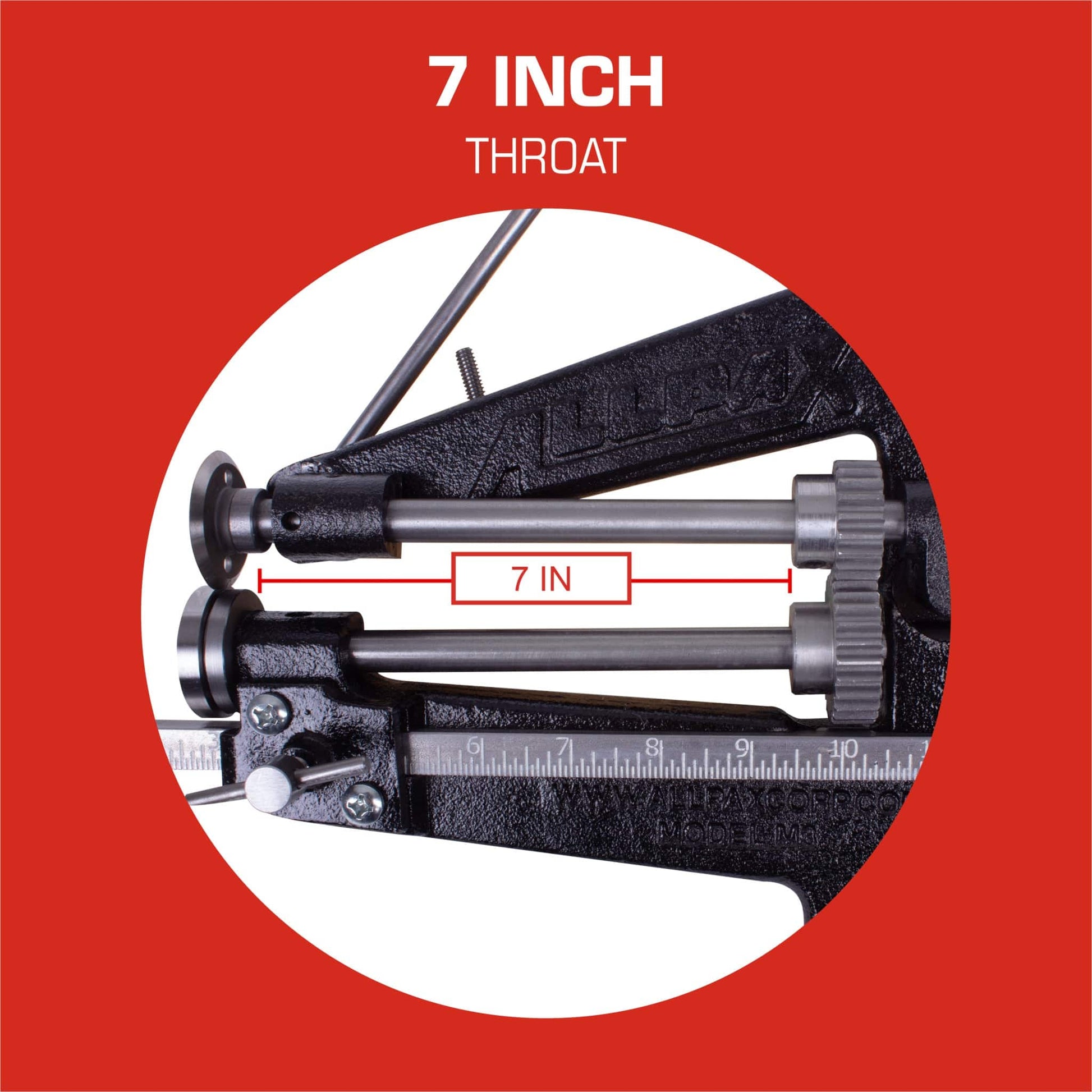

Heavy-duty, cast iron frame with 7" throat

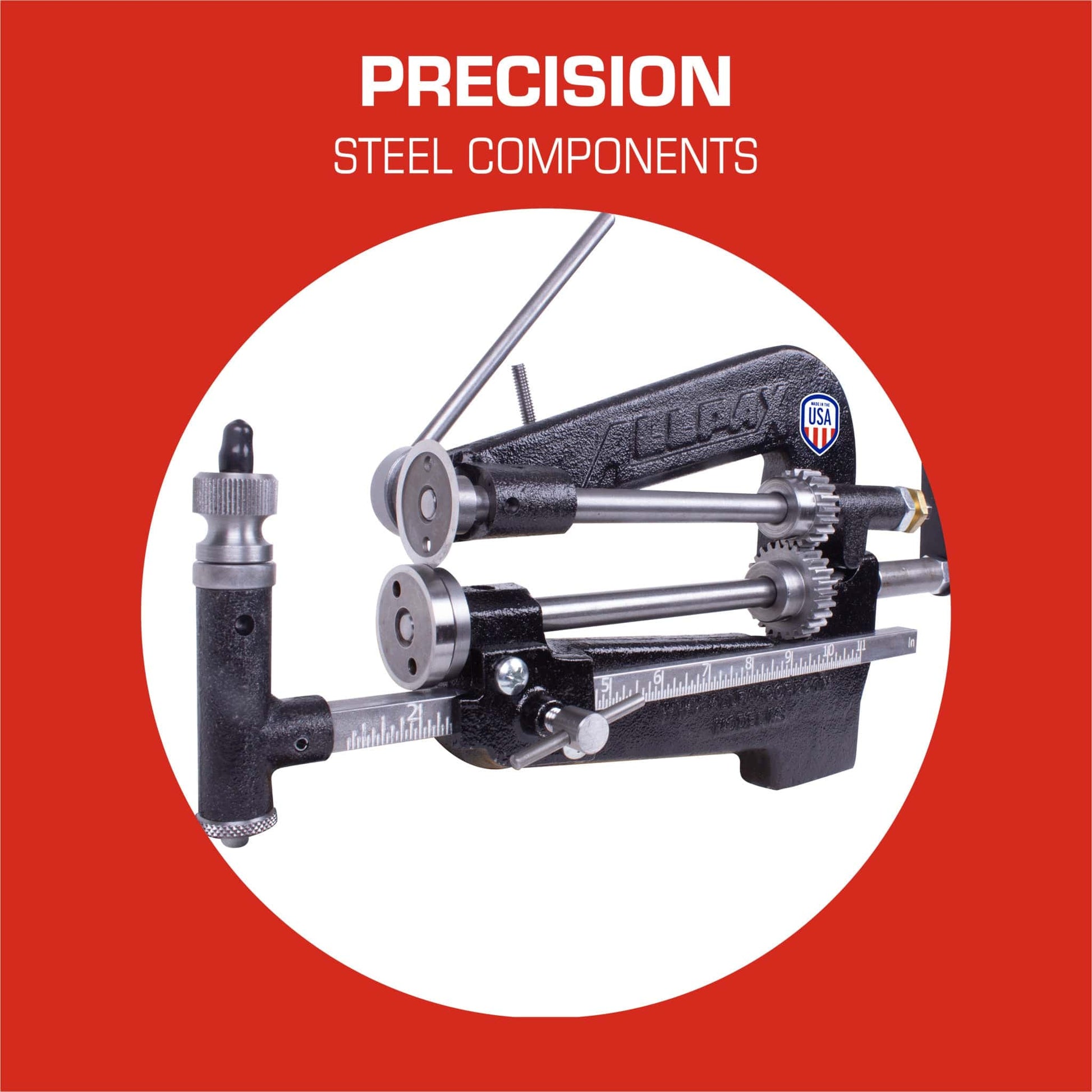

Precision steel components

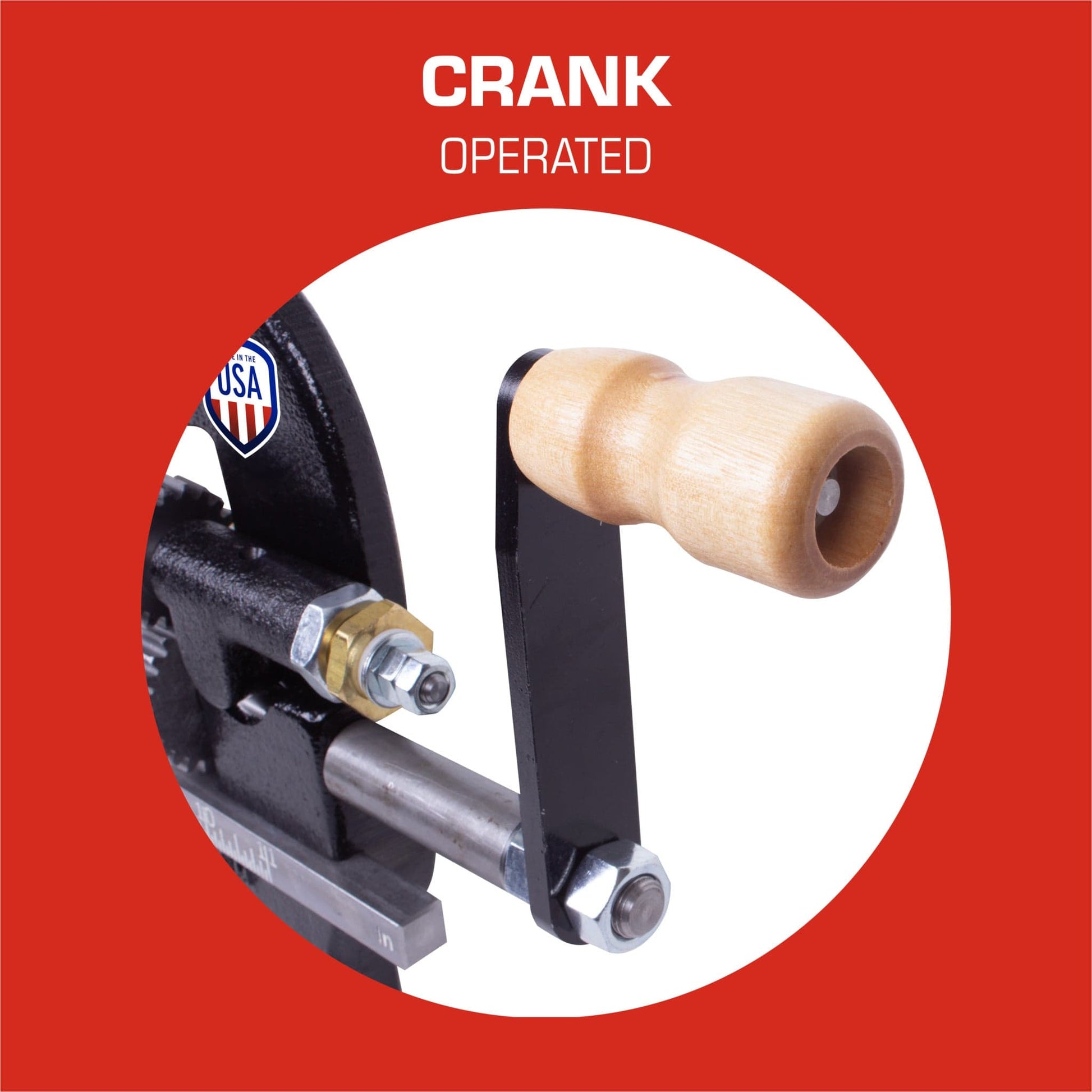

Crank operated

See more details

$1,172.56

Bestseller

Product variants

Save 20% with code SUMMER20 through August 28.

View full details

Overview

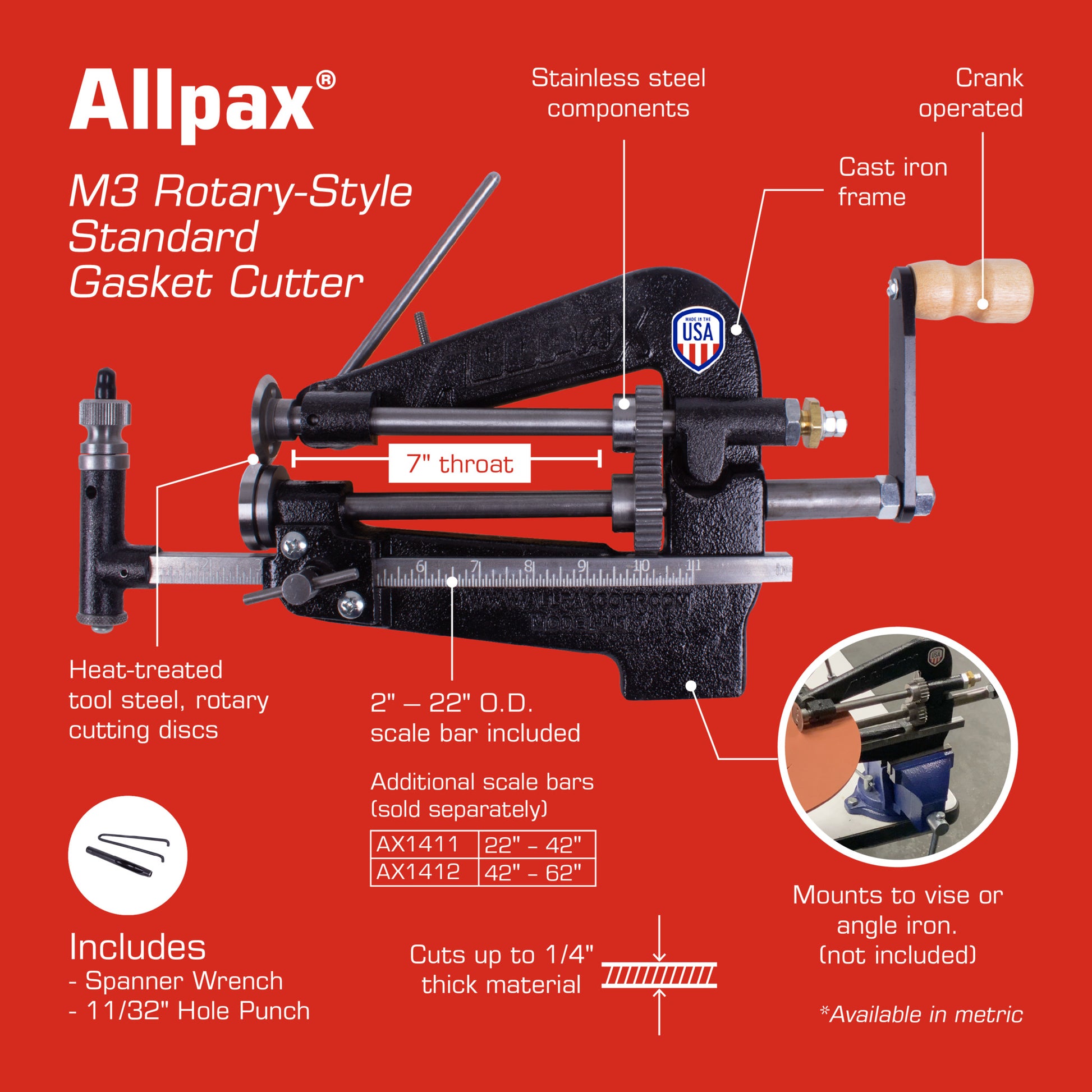

Cut accurate flange, ring, and irregular shaped gaskets with the M3 Rotary-Style Gasket Cutter. Designed primarily for non-metallic gasket materials such as cork, fiber, and rubber, up to ¼" thick. Cuts gaskets with a face width of ¼" to 7"; from 2" I.D. to 22" O.D. Accessory scale bars (not included) extend cutting range from 22" I.D. to 42" O.D., or 42" I.D. to 62" O.D. Mounts on a vise or clamps to a piece of angle iron.

Resources

Features

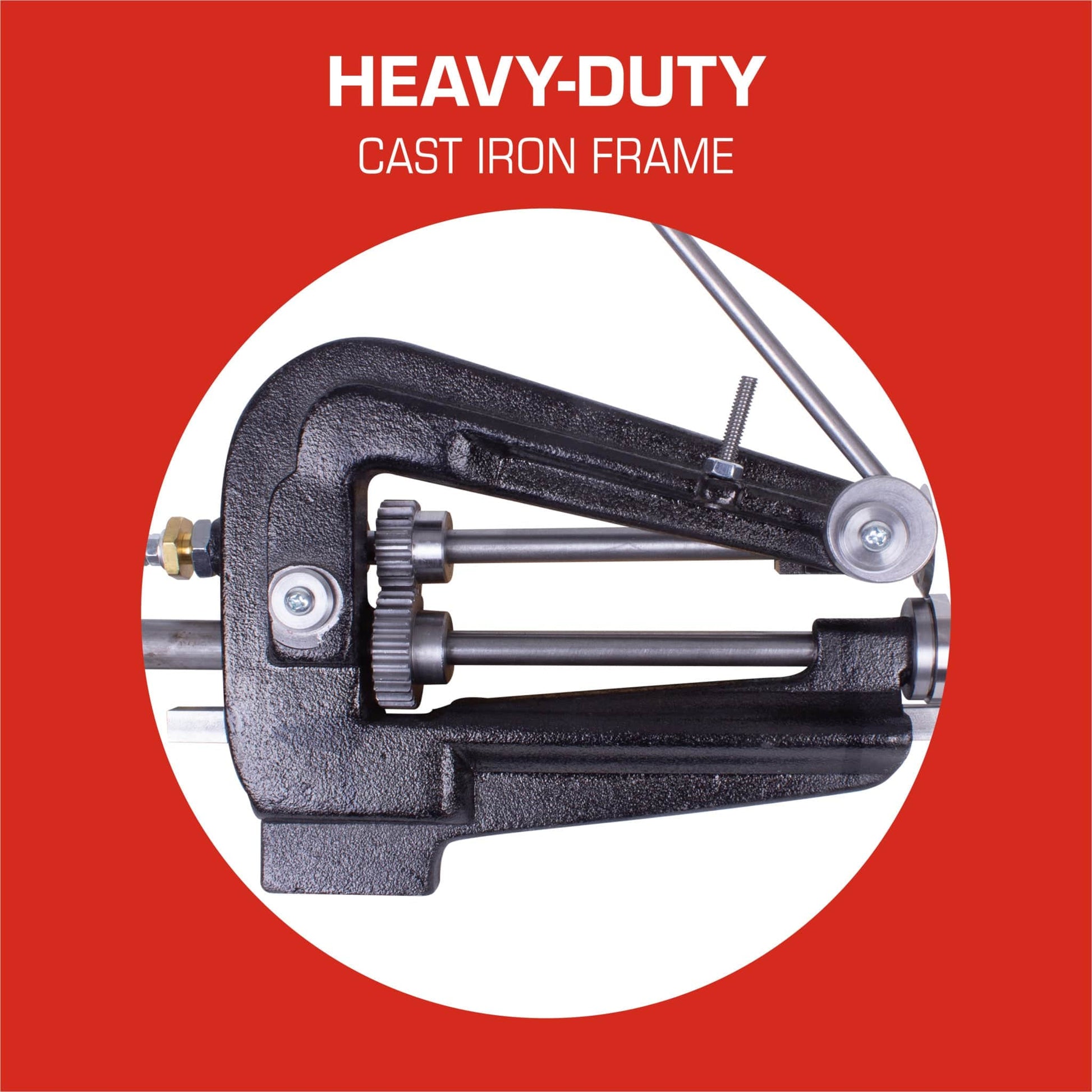

Heavy-duty, cast iron frame with 7" throat
Precision steel components
Crank operated

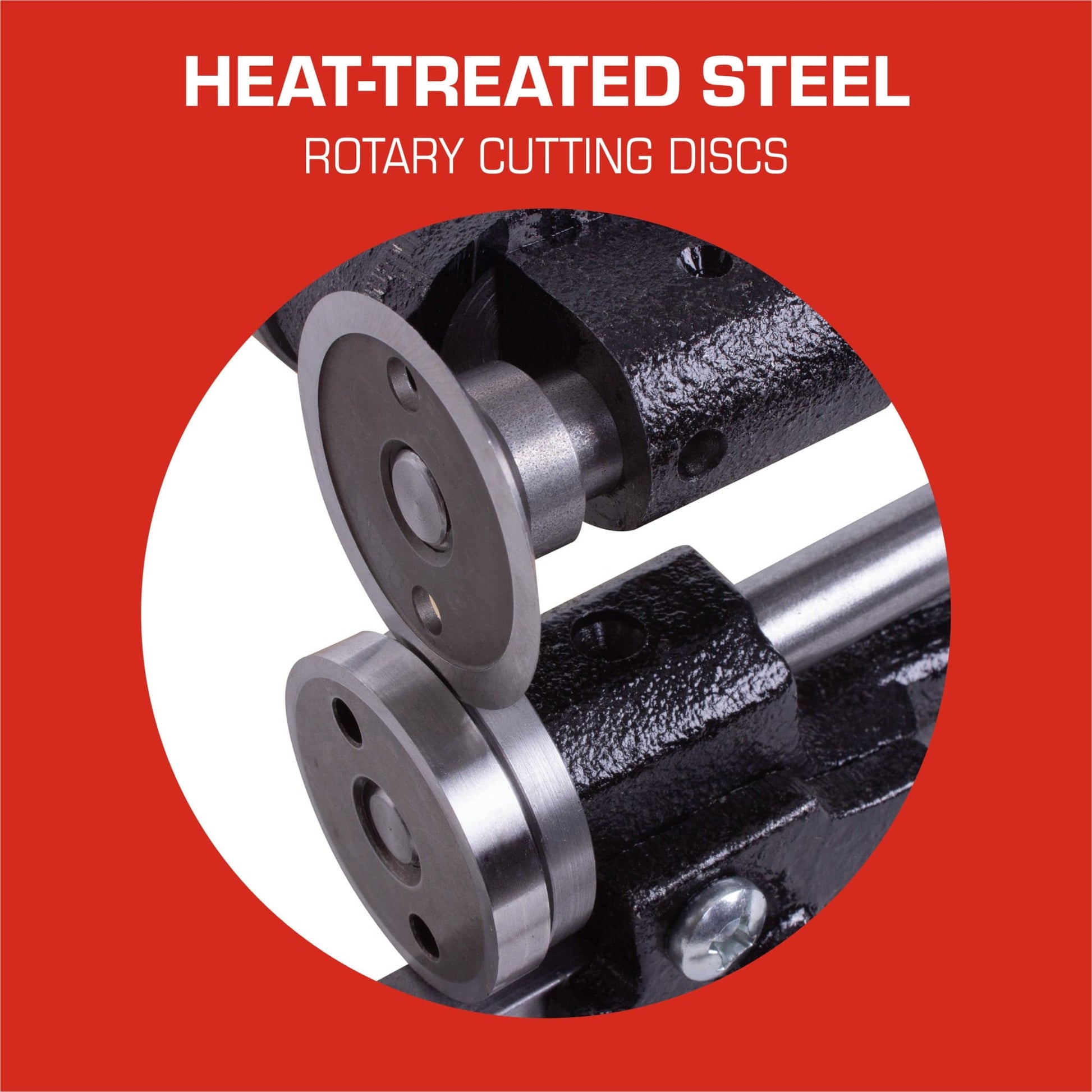

Durable, heat-treated tool steel, rotary cutting discs
Assembled in USA

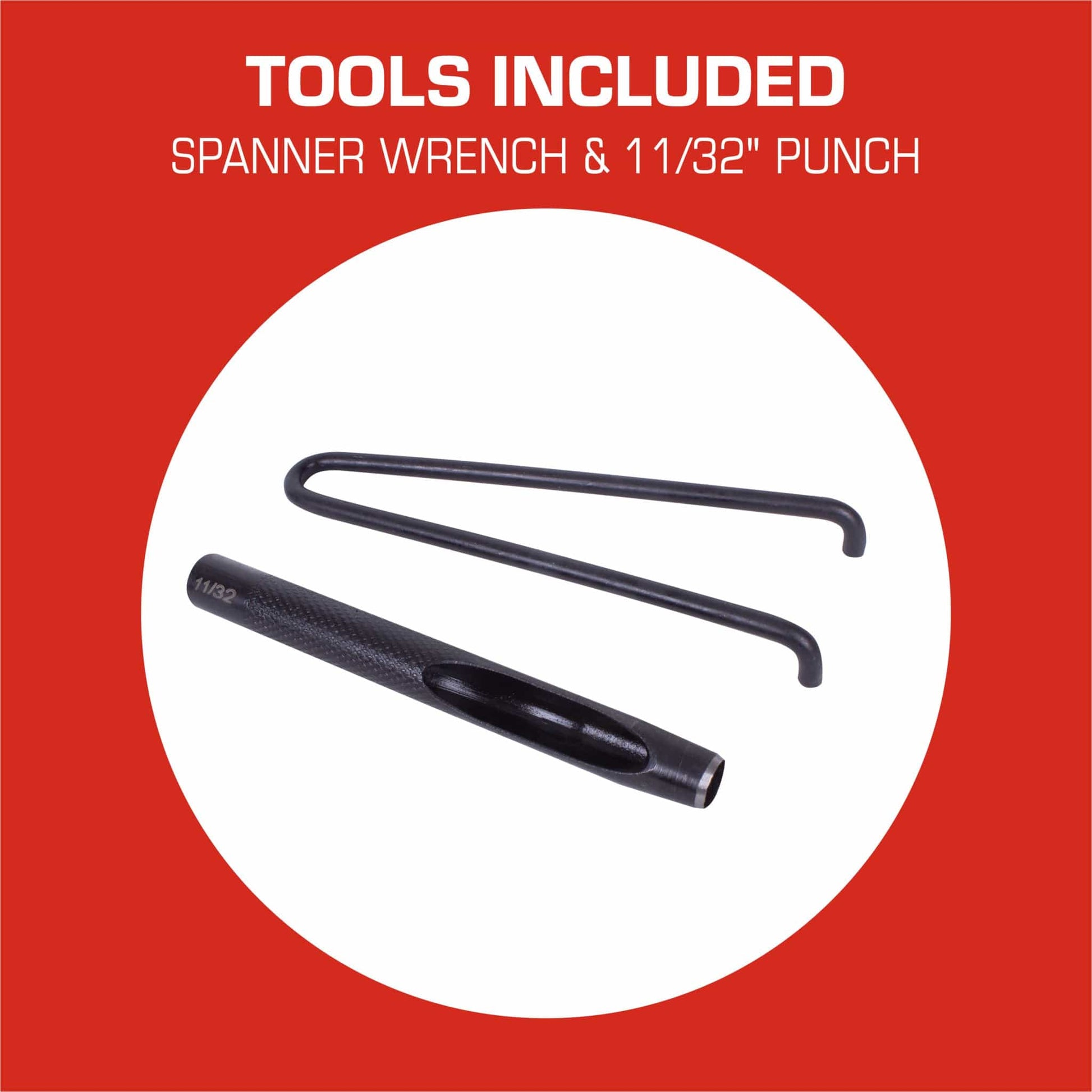

Includes

(1) M3 Rotary-Style Gasket Cutter
(1) 2"-22" Standard Scale Bar
(1) Hole Punch 11/32"
(1) Operations Manual

Typical Applications

Perfect for cutting accurate flange and ring gaskets
Designed primarily for non-metallic gasket materials such as cork, fiber, and rubber
Best for manual rotary cutting in fixed or mobile setups

Shipping & Returns

Lead time: 2 Days. Eligible for free ground shipping on domestic orders of $149 or more.

Returnable within 30 days. Must be in factory mint condition and is subject to a 25% restocking charge.

Read the full Shipping & Return policy here.

⚠️ WARNING: Cancer and Reproductive Harm - P65warnings.ca.gov

Warranty

Limited Warranty – One Year Warranty Period. See more details.

How do rotary-style gasket cutters work?

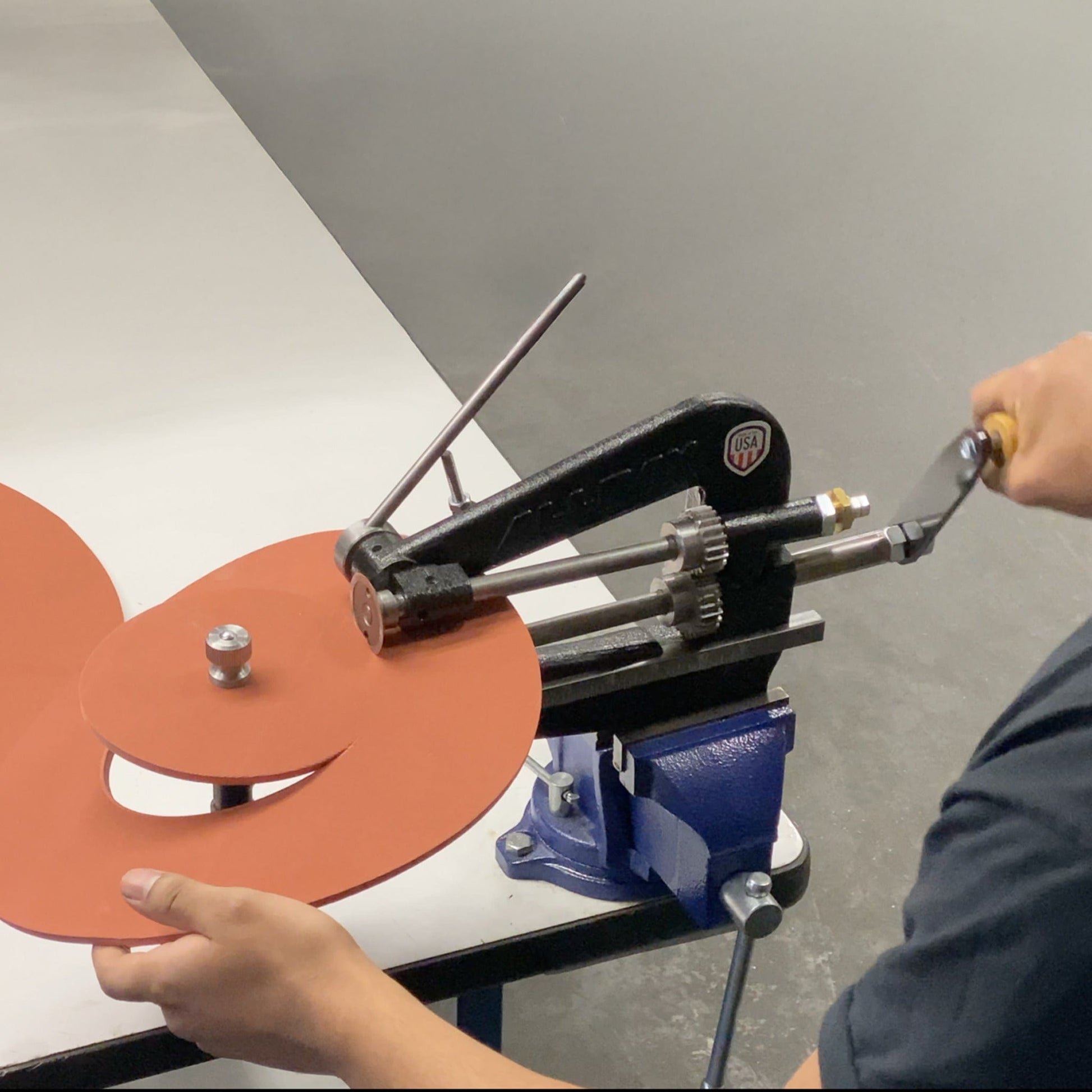

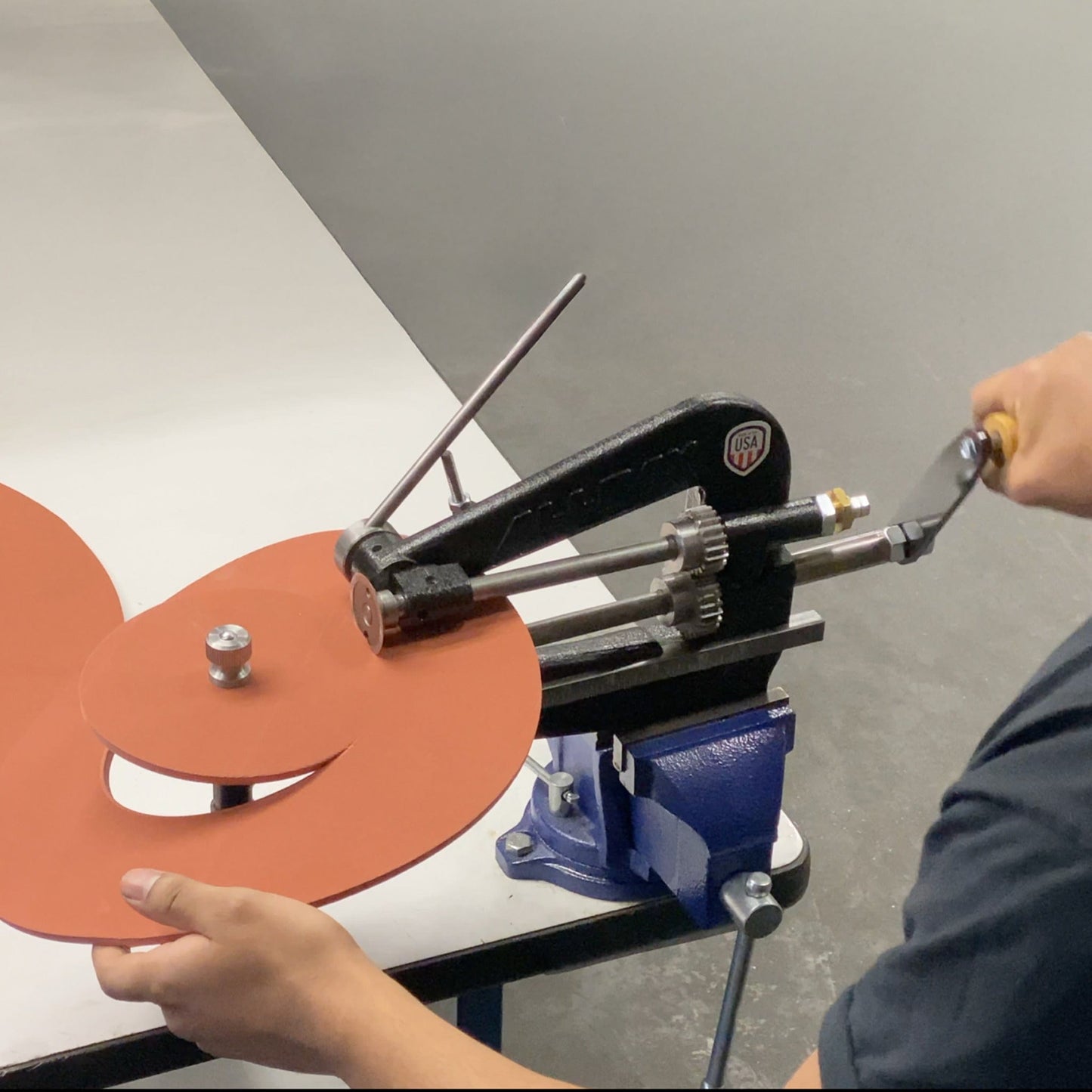

Rotary-style gasket cutters use two cutting discs to cut the material as it rotates around a center spindle. Set the scale bar to the desired outside diameter, punch a guide hole in the material, and secure it on the spindle. Lower the top cutting disc, then turn the hand crank or activate the motor while applying pressure. After cutting the outside diameter, reset the scale bar and repeat the process for the inside diameter. For detailed operating instructions, view our Instruction Guides.

What is the difference between the M3 Motorized M3, and SM4 Rotary-Style Gasket Cutters?

The M3 is hand-cranked and mounts in a vise or clamps to angle iron, making it suitable for fixed or mobile use with non-metallic gasket materials. The Motorized M3 is bench-mounted and powered for faster, repetitive cutting of non-metallic gasket materials. The SM4 is a larger, bench-mounted manual cutter designed for both metallic and non-metallic materials.

What size gaskets can the Allpax M3 Rotary-Style Gasket Cutter cut?

The standard M3 cuts gaskets from 2 inch ID to 22 inch OD, while the metric model cuts from 51 mm ID to 56 cm OD. Both handle gasket face widths from 1/4 inch to 7 inches (6.4 mm to 18 cm). Optional scale bars extend the maximum outside diameter to 62 inches or 158 cm.

What materials can the Allpax M3 Rotary-Style Gasket Cutter cut?

The M3 is designed primarily for non-metallic gasket materials such as rubber, cork, and fiber. Cutting metallic gasket materials is generally not recommended.

How thick of a gasket material can the M3 Rotary-Style Gasket Cutter cut?

The M3 can cut gasket materials up to 1/4 inch, or 6.4 mm, thick depending on the material. Thick or tough materials may require more than one pass or cutting from both sides.

Can the M3 Rotary-Style Gasket Cutter cut irregular shapes?

Yes. Remove the scale bar and manually guide the gasket material through the cutting discs along the marked outline. An additional person may be helpful when guiding larger pieces of material.

Part Number	Cutting Range	Max Material Thickness	Gasket Face Width	Measurement System	Operation	Dimensions (L" x W" x H")	Weight (lbs)
AX7000	2-22"	1/4"	1/4"-7"	Inch	Hand crank	18.2 X 9.8 X 4.5	14.1
AX7050	51-560 mm	6.35 mm	6.4-178 mm	Metric	Hand crank	18.2 X 9.8 X 4.5	14.1
