Part Number: AX5502
- Plastic construction
- Center hole with radial indents for precise marking
Regular price
$18.18
Regular price
Sale price
$18.18
Unit price
per
Bestseller
Quantity
Couldn't load pickup availability
×
Overview

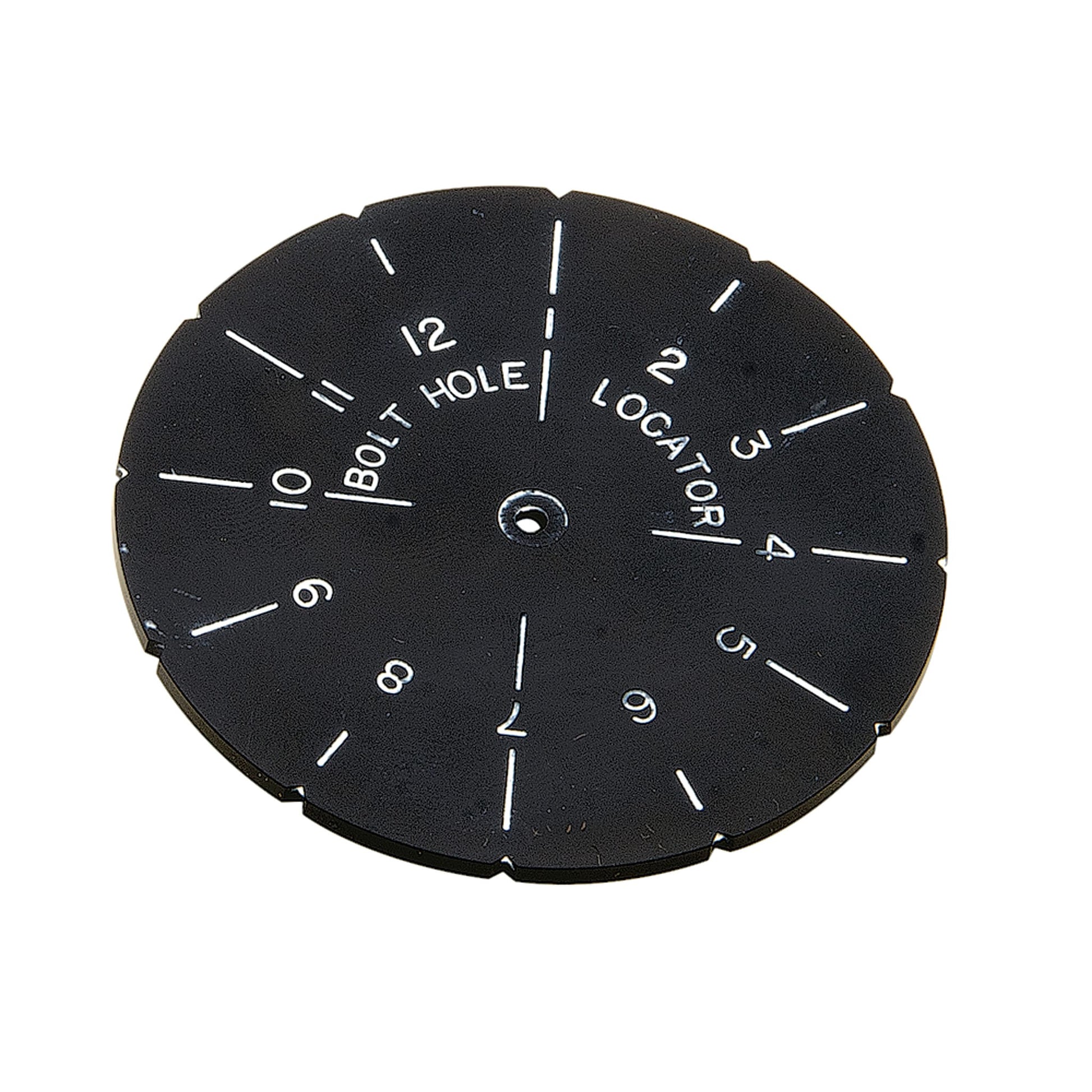

Determine exact location where to punch flange gasket bolt holes. Perfect for laying out 4, 6, 8, 12 and 24 bolt hole patterns. For use with all ALLPAX Gasket Cutters.
Resources
Collapsible content
Features
- Plastic construction
- Center hole with radial indents for precise marking
Includes
- (1) Bolt Hole Locator
Typical Applications
Shipping & Returns
Lead time: . Eligible for free ground shipping on domestic orders of $149 or more.
Returnable within 30 days. Must be in factory mint condition and is subject to a 25% restocking charge.
Read the full Shipping & Return policy here.
⚠️ WARNING: Cancer and Reproductive Harm - P65warnings.ca.gov
Warranty
Limited Warranty – One Year Warranty Period. See more details.
Collapsible content
What does the Bolt Hole Locator do?
The Bolt Hole Locator helps evenly position and mark bolt-hole centers around a gasket's pitch circle diameter. It lays out the hole locations but does not cut the holes.
How do I use the Bolt Hole Locator?
Place the locator over the center pin and align the correct pattern with the gasket's pitch circle diameter. Rotate the locator to mark each bolt-hole center, then remove it before cutting the holes.
What bolt-hole patterns can the Bolt Hole Locator lay out?
The Bolt Hole Locator can be used to lay out patterns with 4, 6, 8, 12, or 24 evenly spaced bolt holes.
What do I need to cut the bolt holes after marking them?
After marking the bolt-hole centers, use a properly sized hollow punch to cut the holes in the gasket material.
