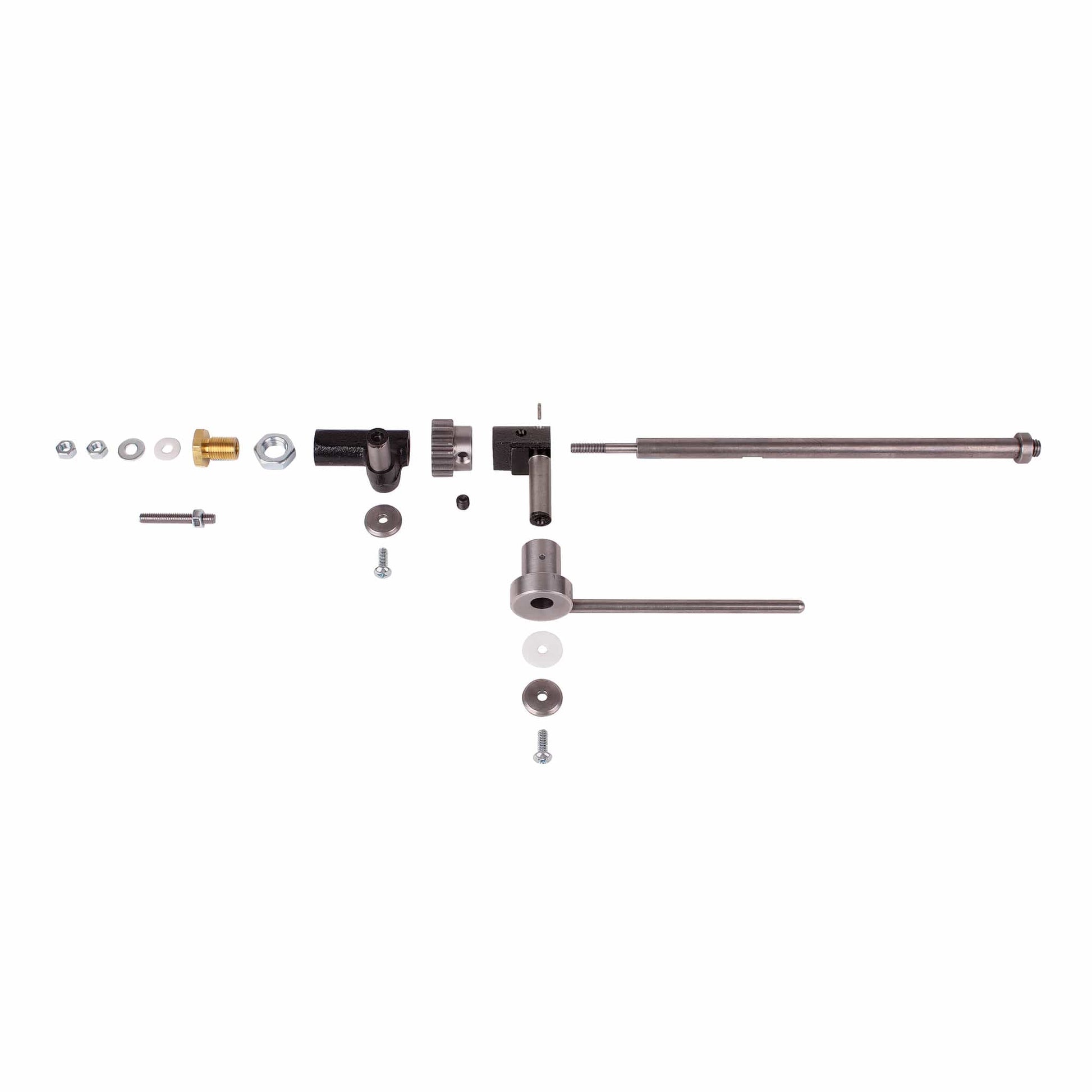

M3 Top Shaft Rebuild Kit

M3 Top Shaft Rebuild Kit

Part Number: AX1453

  • M3 Top Shaft Rebuild Kit Parts & Accessories Allpax
1 1
$327.14
$327.14
Sale Sold out

Mechanical components and hardware to rebuild the top cutting shaft of M3 Rotary-Style Gasket Cutters.

Parts & Accessories
Click to see List
Click to see Schematic

View full details
  • Precision machined components
  • Durable steel materials
  • Made in USA
  • (1) Thrust Bearing housing
  • (1) Teflon Washer .06 x 5/8 x .26 ID
  • (2) 1/4-28 Hex Nut
  • (1) 1/4 Flat Washer
  • (1) Thrust Bearing
  • (1) Hex Nut 9/16-18 x 7/8 x 5/16
  • (1) Top Cutter Lifter Bearing
  • (1) Top Shaft Gear
  • (1) Top Shaft
  • (1) Top Cutter Lifter Cam
  • (1) Threaded Stud 1/4 -20 x 3/4
  • (1) 1/4-20 Hex Nut
  • (1) Cup Point Set Screw
  • (2) Beveled Washer
  • (1) Teflon Washer 1/16 x 7/8 x 7/32
  • (2) Round Phillip Head Machine Screw
    • Precision machined components
    • Durable steel materials
    • Made in USA
  • (1) Thrust Bearing housing
  • (1) Teflon Washer .06 x 5/8 x .26 ID
  • (2) 1/4-28 Hex Nut
  • (1) 1/4 Flat Washer
  • (1) Thrust Bearing
  • (1) Hex Nut 9/16-18 x 7/8 x 5/16
  • (1) Top Cutter Lifter Bearing
  • (1) Top Shaft Gear
  • (1) Top Shaft
  • (1) Top Cutter Lifter Cam
  • (1) Threaded Stud 1/4 -20 x 3/4
  • (1) 1/4-20 Hex Nut
  • (1) Cup Point Set Screw
  • (2) Beveled Washer
  • (1) Teflon Washer 1/16 x 7/8 x 7/32
  • (2) Round Phillip Head Machine Screw
    • Part Number Dimensions
    (L" x W" x H")     		Weight (lbs)
    Part Number AX1453 Dimensions
    (L" x W" x H")     11.3 X 3.3 X 1.7     		Weight (lbs) 2.1
    Lead Time: 12 Days
