Shop by Model
Rotary-Style Cutters for the Shop
Explore hand-crank and motorized models designed for accurate, repeatable gasket fabrication.
-

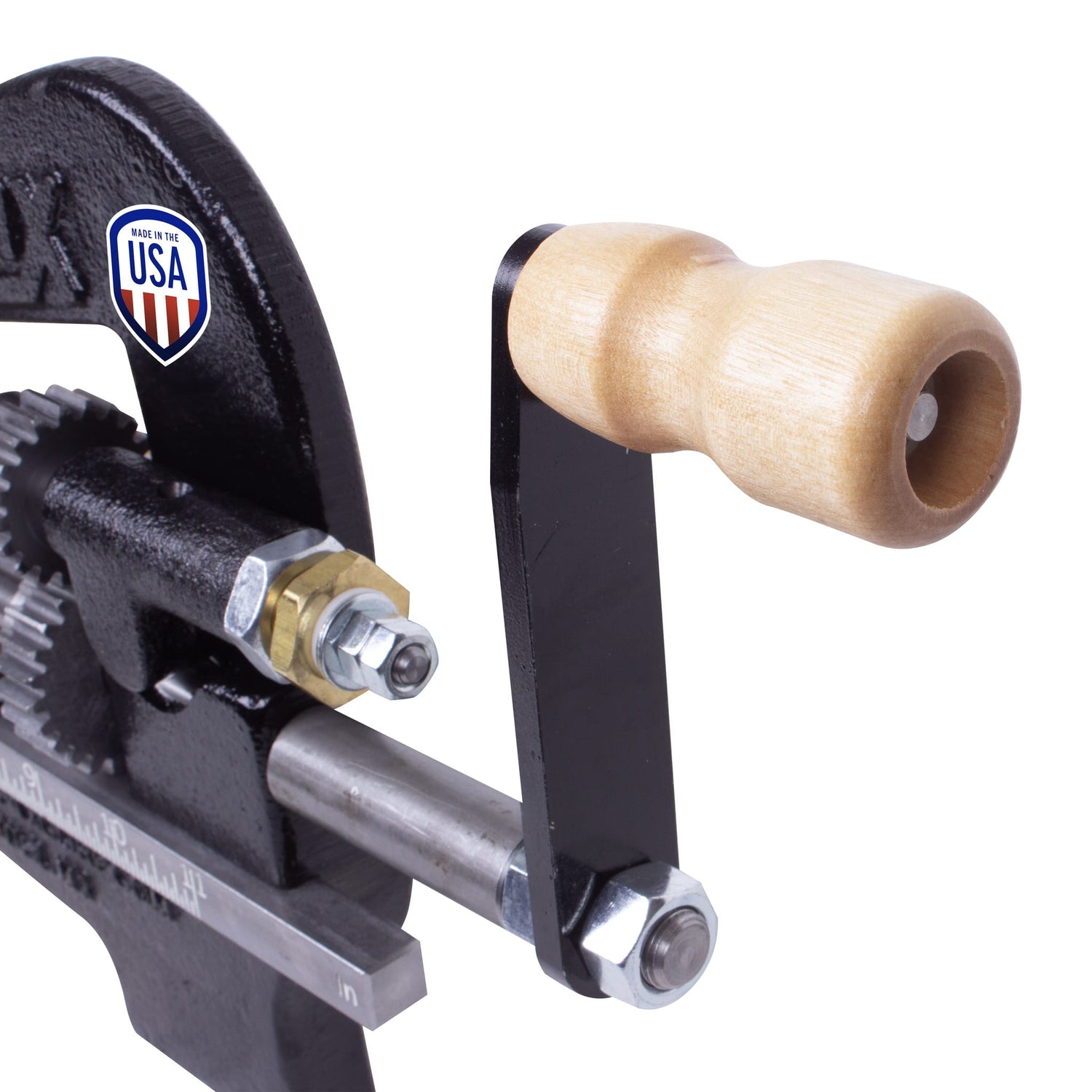

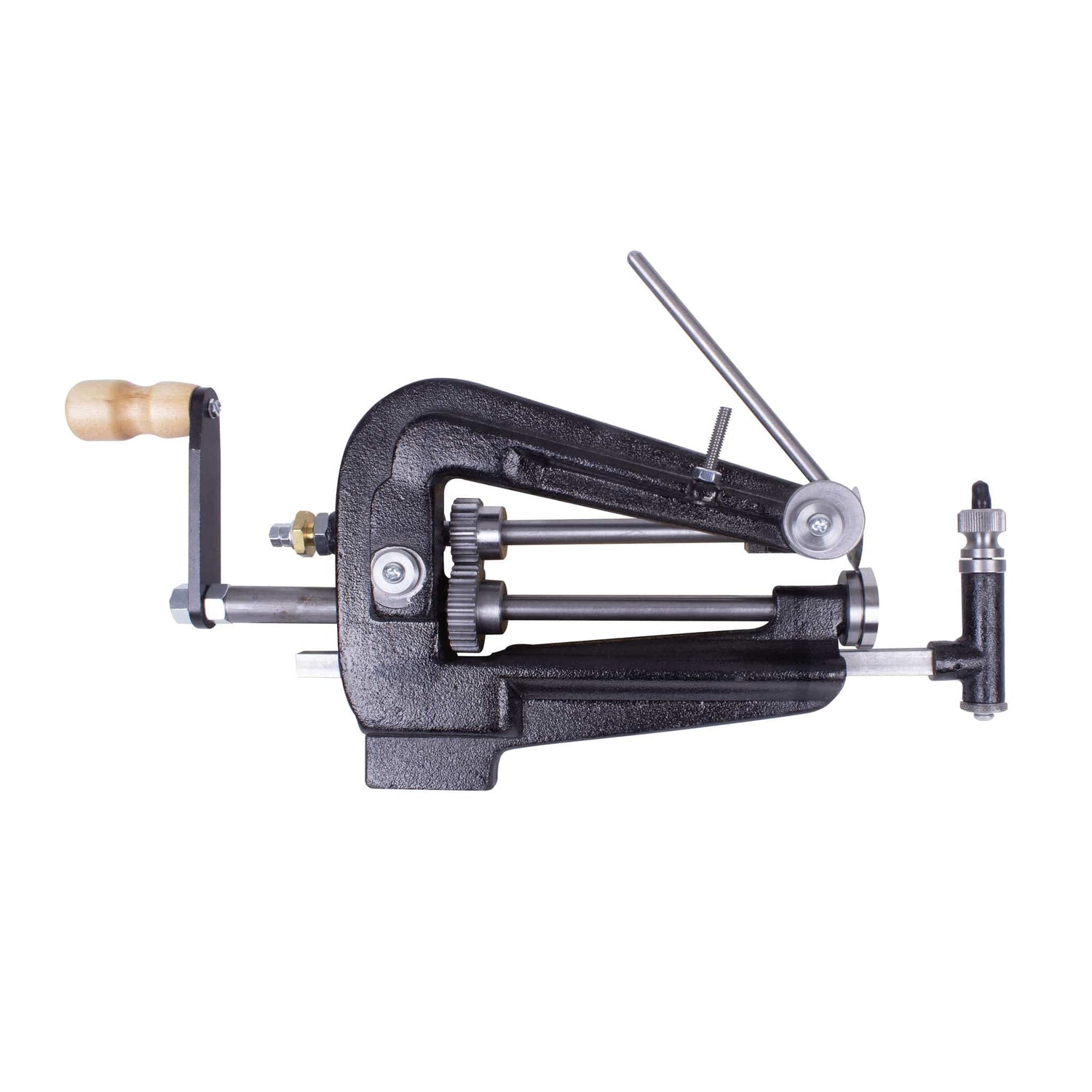

AX7000 SeriesShop M3Hand-crank cutter for precise flange, ring, and irregular-shaped gaskets in non-metallic materials.
-

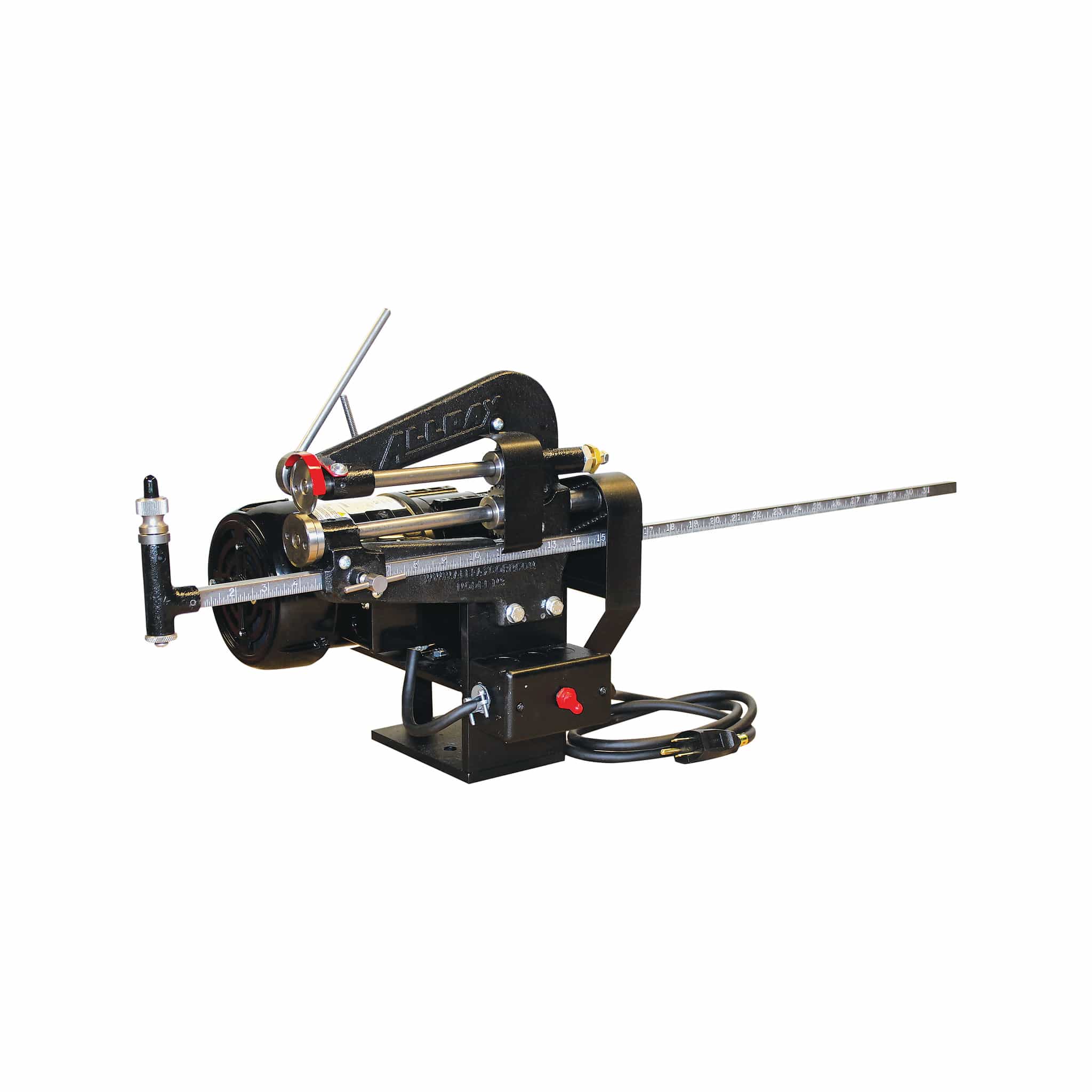

AX7200 SeriesShop Motorized M3Powered rotary cutter for faster, repeatable production of non-metallic flange and ring gaskets.
-
AX7001Shop SM4Heavy-duty hand-crank cutter for non-metallic and metallic flange, ring, and irregular-shaped gaskets.
Compare Models
Which Rotary-Style Cutter is Right for You?
Compare key features and capabilities side by side to select the model that best fits your application.
| Feature |  M3 AX7000 Series |  Motorized M3 AX7200 Series |  SM4 AX7001 |
|---|---|---|---|
|
Best For | Manual rotary cutting in fixed or mobile setups | Faster, repetitive runs of same-size gaskets | Metallic materials, wider gasket faces, and fixed-shop operation |
|
Recommended Materials | Non-metallic, including rubber, cork, fiber, PTFE/Teflon | Non-metallic, including rubber, cork, fiber, PTFE/Teflon | Metallic and non-metallic, including steel, copper, brass, rubber, fiber, graphite, PTFE/Teflon |
|
Operation | Manual; hand crank | Motorized | Manual; hand crank |
|
Cutting Diameter Range | Standard: 3" ID-22" OD; metric: 51-560 mm; optional scale bars extend to 62"/1580 mm OD | Standard: 2" ID-62" OD; metric: 60-1580 mm | Standard: 3" ID-28" OD; optional scale bars extend to 54" or 80" OD |
|
Gasket Face Width | 1/4"-7" (6.4-178 mm) | 1/4"-7" (6.4-178 mm) | 1/2"-8 3/4" |
|
Mounting & Portability | Vise mount or clamp to angle iron; fixed or mobile | Bench mount; fixed or mobile | Bench mount; fixed operation |
|
Construction | Cast-iron frame; precision steel components | Cast-iron frame; precision steel components | Cast-iron frame; precision steel components |
|
Model / Kit Options | Standard or metric | Standard or metric; 120V or 220V | Standard model only |
|
Max Material Thickness | Up to 1/4" (6.35 mm), material dependent | Up to 1/4" (6.35 mm), material dependent | Up to 1/4" (6.35 mm), material dependent |
| Shop M3 | Shop Motorized M3 | Shop SM4 |
Why Rotary-Style
Built for Precision & Repeatability
Repeatable Performance
Consistent Cut After Cut
Bench-mounted rotary cutters are designed for repeatable gasket fabrication with smooth operation and consistent results.
- Ideal for repeated production
- Stable bench or vise mounting
- Accurate flange and ring gaskets
Heavy-Duty Design
Engineered for Demanding Work
Cast-iron construction and precision-machined components deliver reliable performance in demanding shop environments.
- Cast-iron frame
- Precision steel components
- Built for long service life
Choose Your Workflow
Manual or Motorized
Select a hand-crank or motorized cutter based on your production volume and workflow.
- Hand-crank models for everyday fabrication
- Motorized M3 for higher-volume production
- Same precision, different throughput
Extension vs. Rotary
Which Style is Right for You?
-

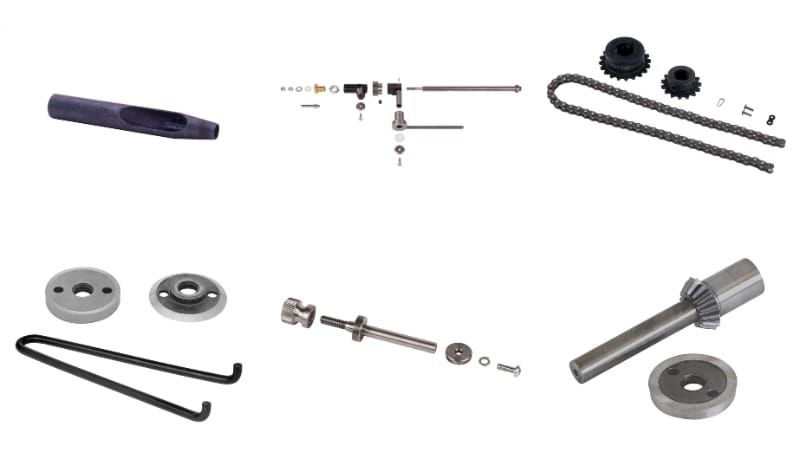

Parts & AccessoriesView Parts & Accessories
Keep your rotary-style gasket cutter operating at its best with genuine Allpax replacement parts and accessories for every model.
-
Still Not Sure Which Model is Right?
Our team can help you choose the right rotary-style gasket cutter based on your material, application, and production needs.
