Part Number: AX6003
- Manual Gasket Cutting: Standard kit cuts flange and ring gaskets up to 49 in. OD
- Radius Adjustment: Easy-to-read precision scale and sliding knurled nut support repeatable sizing
- Material Range: Standard and heavy-duty blades cut rubber, graphite, PTFE, and reinforced fiber materials
Regular price
$490.74
Regular price
Sale price
$490.74
Unit price
per
Quantity
Couldn't load pickup availability
×
Overview

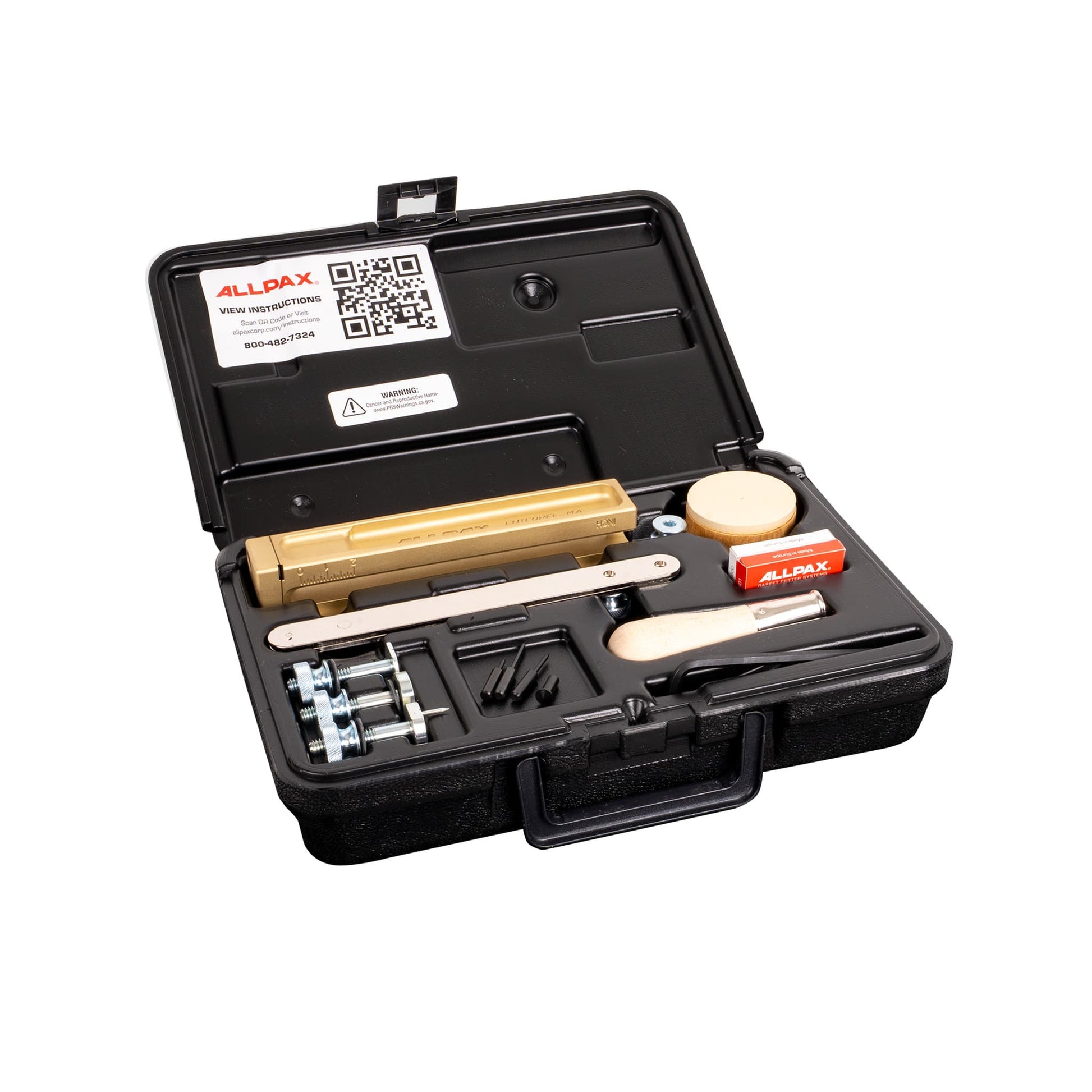

The Allpax Heavy-Duty Standard Gasket Cutter Kit (AX6003) gives maintenance teams an on-demand way to fabricate flange and ring gaskets for plant or field repairs. This board-free model uses standard measurements and cuts up to 49 in. OD, making it suitable for technicians who provide their own cutting surface. A durable brass cutter block and multiple blade styles provide controlled cutting across common nonmetallic gasket materials. Proudly assembled in the USA.
Resources
Collapsible content
Features
- Manual Gasket Cutting: Standard kit cuts flange and ring gaskets up to 49 in. OD
- Radius Adjustment: Easy-to-read precision scale and sliding knurled nut support repeatable sizing
- Material Range: Standard and heavy-duty blades cut rubber, graphite, PTFE, and reinforced fiber materials
- Cutting Depth: Blade-retaining hex screws support cuts up to 3/4 in. deep
- Larger Diameter Reach: Chrome-plated steel extension bars expand the cutting range
- Organized Transport: Rugged storage case protects kit components between maintenance jobs
Includes
- (6) Standard Blades
- (6) Heavy-Duty Blades
- (1) Short Center Pin
- (1) Medium Center Pin
- (1) Long Center Pin
- (1) Disc Pin
- (1) Post with Offset Pin
- (1) Pivot Post
- (1) Extension Bar Pivot Post
- (3) Knurled Nut for Pivot Post
- (3) Knurled Nut for Extensions Bar
- (1) Extension Bar 13"-25"
- (2) Extension Bar Over 25"
- (1) Cutting Knob
- (2) Center Pin Ferrules - Installed
- (1) Cutter Block Assembly
- (1) Storage Case
- (1) Center Pin Handle
- (1) Dove Tail Designer Template
- (1) Bolt Hole Locator Template
- (1) Instructions
Typical Applications
Shipping & Returns
Lead time: . Eligible for free ground shipping on domestic orders of $149 or more.
Returnable within 30 days. Must be in factory mint condition and is subject to a 25% restocking charge.
Read the full Shipping & Return policy here.
⚠️ WARNING: Cancer and Reproductive Harm - P65warnings.ca.gov
Warranty
Limited Warranty – One Year Warranty Period. See more details.
Collapsible content
How do extension-style gasket cutters work?
Extension-style gasket cutters rotate around a center pin to cut precise circles. Place the gasket material on a suitable cutting surface, create a small center hole, and position the material over the center pin. Set the cutter to the desired outside diameter and rotate it around the pin to make the first cut. Then adjust it to the inside diameter and repeat the process to complete the gasket. Extension bars are used when cutting larger diameters. For detailed operating instructions, view our Instruction Guides.
What is the difference between Heavy-Duty Light-Duty, and Compact Gasket Cutters?
Heavy-Duty cutters feature a durable brass cutter block and offer the widest cutting range, making them a good choice for frequent use and larger gaskets. Light-Duty cutters provide a more economical option for standard gasket-cutting applications, with capacities up to 37 inches. Compact cutters are designed for smaller gaskets up to 6 inches and are easy to carry and use in the field.
What cutting ranges are available for Allpax Heavy-Duty Gasket Cutters?
Standard Heavy-Duty kits are available with maximum outside-diameter capacities of 13, 25, 37, 49, or 61 inches. Metric kits are available with capacities of 330, 635, 940, 1245, or 1550 mm. Choose the model based on the largest gasket diameter you need to cut and your preferred measurement system.
What materials can Allpax Heavy-Duty Gasket Cutters cut?
Heavy-Duty Gasket Cutters are designed for common nonmetallic gasket materials, including rubber, graphite, Teflon (PTFE), and fiber-reinforced materials.
How thick of a gasket material can the Heavy-Duty Gasket Cutter cut?
The Heavy-Duty Gasket Cutter has a maximum cutting depth of 3/4 inch, or 19 mm. Thick or hard-to-cut materials may require several shallow passes or cutting partway through from each side.
