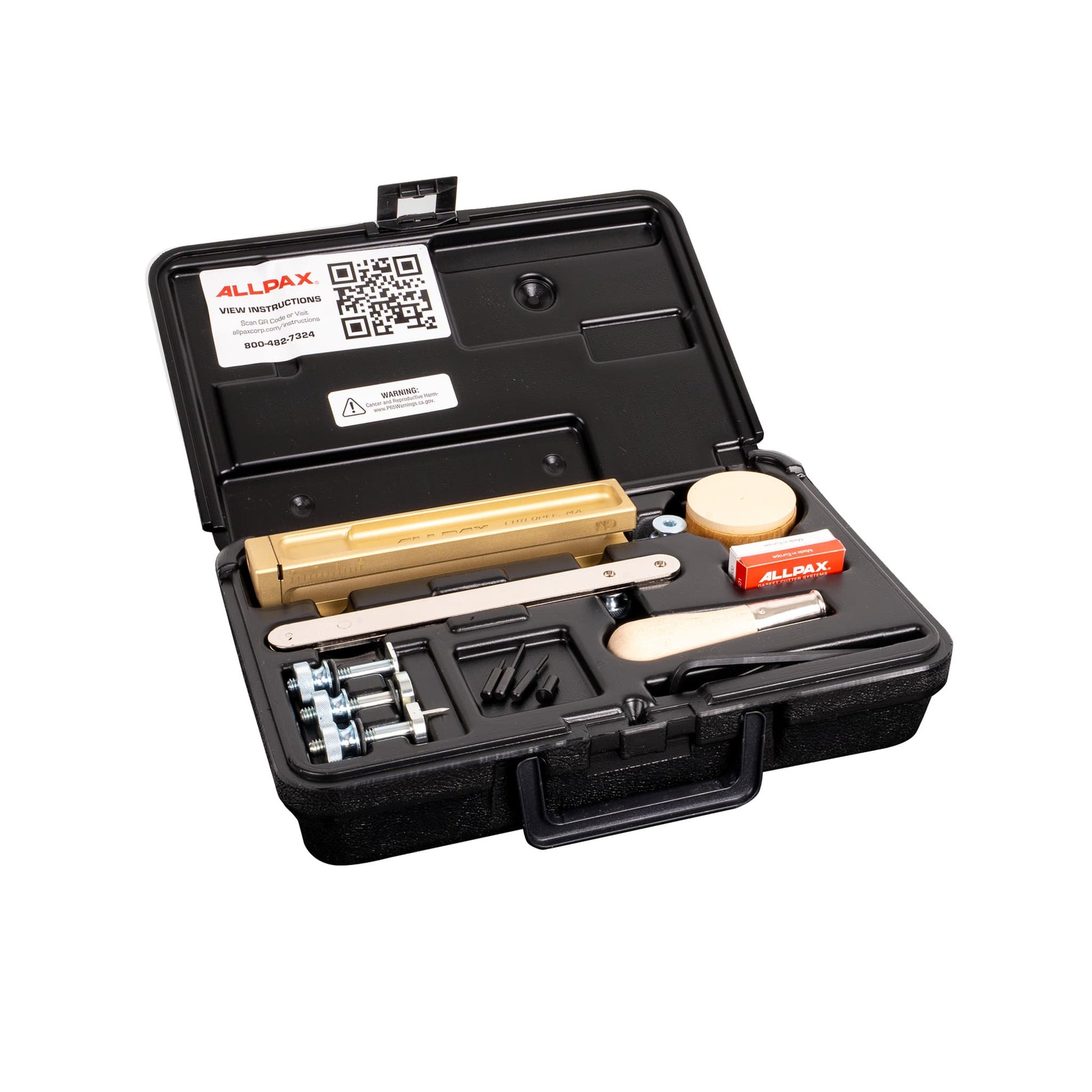

Heavy-Duty Metric Gasket Cutter Kit - 0 to 1245 mm (OD)

Name: Heavy-Duty Metric Gasket Cutter Kit - 0 to 1245 mm (OD)
Brand: Allpax
SKU: AX6103
Price: 490.74 USD
Availability: InStock

1 12

Part Number: AX6103

Premium, brass cutter block
Standard-Duty and Heavy-Duty cutting blades
Chrome plated, steel extension bars

See more details

$490.74

Product variants

View full details

Overview

Extension-style kits feature premium, brass cutter block with contoured edges to minimize gasket material buckling and assure precision cuts. Ergonomic design offers secure, comfortable grip. Easy-to-read, engraved, precision scale. Sliding, knurled nut adjusts cutting radius. Chrome-plated, steel extension bars provide for cuts up to 1245mm in diameter. Hex screws hold cutting blade for cuts up to 19mm in depth. Includes rugged storage case, dove-tail designer template, bolt hole locator template, and center pin handle.

Resources

Features

Premium, brass cutter block
Standard-Duty and Heavy-Duty cutting blades
Chrome plated, steel extension bars
Rugged storage case
Assembled in USA

Includes

(6) Standard Blades
(6) Heavy-Duty Blades
(1) Short Center Pin
(1) Medium Center Pin
(1) Long Center Pin
(1) Disc Pin
(1) Post with Offset Pin
(1) Pivot Post
(1) Extension Bar Pivot Post
(3) Knurled Nut for Pivot Post
(3) Knurled Nut for Extensions Bar
(1) Extension Bar 13"-25"
(2) Extension Bar Over 25"
(1) Cutting Knob
(2) Center Pin Ferrules - Installed
(1) Cutter Block Assembly
(1) Storage Case
(1) Center Pin Handle
(1) Dove Tail Designer Template
(1) Bolt Hole Locator Template
(1) Instructions

Typical Applications

Ideal for cutting seals, pipes and boiler flange gaskets
Best for frequent field or plant use; widest extension-style capacity

Shipping & Returns

Lead time: 20 Days. Eligible for free ground shipping on domestic orders of $149 or more.

Returnable within 30 days. Must be in factory mint condition and is subject to a 25% restocking charge.

Read the full Shipping & Return policy here.

⚠️ WARNING: Cancer and Reproductive Harm - P65warnings.ca.gov

Warranty

Limited Warranty – One Year Warranty Period. See more details.

How do extension-style gasket cutters work?

Extension-style gasket cutters rotate around a center pin to cut precise circles. Place the gasket material on a suitable cutting surface, create a small center hole, and position the material over the center pin. Set the cutter to the desired outside diameter and rotate it around the pin to make the first cut. Then adjust it to the inside diameter and repeat the process to complete the gasket. Extension bars are used when cutting larger diameters. For detailed operating instructions, view our Instruction Guides.

What is the difference between Heavy-Duty Light-Duty, and Compact Gasket Cutters?

Heavy-Duty cutters feature a durable brass cutter block and offer the widest cutting range, making them a good choice for frequent use and larger gaskets. Light-Duty cutters provide a more economical option for standard gasket-cutting applications, with capacities up to 37 inches. Compact cutters are designed for smaller gaskets up to 6 inches and are easy to carry and use in the field.

What cutting ranges are available for Allpax Heavy-Duty Gasket Cutters?

Standard Heavy-Duty kits are available with maximum outside-diameter capacities of 13, 25, 37, 49, or 61 inches. Metric kits are available with capacities of 330, 635, 940, 1245, or 1550 mm. Choose the model based on the largest gasket diameter you need to cut and your preferred measurement system.

What materials can Allpax Heavy-Duty Gasket Cutters cut?

Heavy-Duty Gasket Cutters are designed for common nonmetallic gasket materials, including rubber, graphite, Teflon (PTFE), and fiber-reinforced materials.

How thick of a gasket material can the Heavy-Duty Gasket Cutter cut?

The Heavy-Duty Gasket Cutter has a maximum cutting depth of 3/4 inch, or 19 mm. Thick or hard-to-cut materials may require several shallow passes or cutting partway through from each side.

Part Number	Cutting Range	Max Material Thickness	Measurement System	Operation	Dimensions (L" x W" x H")	Weight (lbs)
AX6100	0-330 mm	19 mm	Metric	Manual	12.3 X 8.8 X 3.4	4.8
AX6101	0-635 mm	19 mm	Metric	Manual	12.1 X 8.2 X 3.1	4.2
AX6102	0-940 mm	19 mm	Metric	Manual	12.1 X 8.2 X 3.1	4.2
AX6103	0-1245 mm	19 mm	Metric	Manual	12.9 X 8.1 X 3.1	4.1
AX6104	0-1550 mm	19 mm	Metric	Manual	12.1 X 8.2 X 3.1	4.2
