Part Number: AX3000
- Plastic cutter block

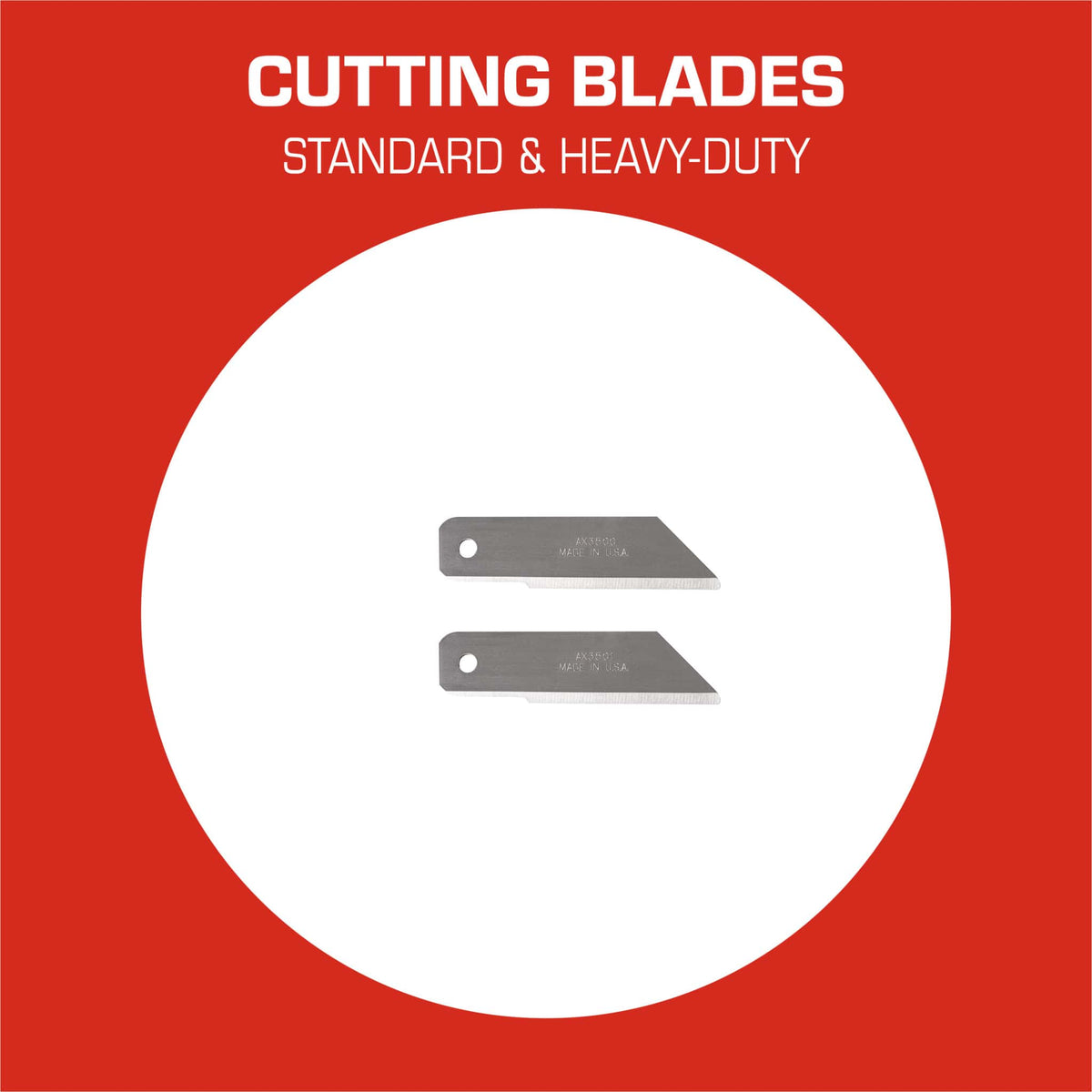

- Standard-Duty and Heavy-Duty cutting blades

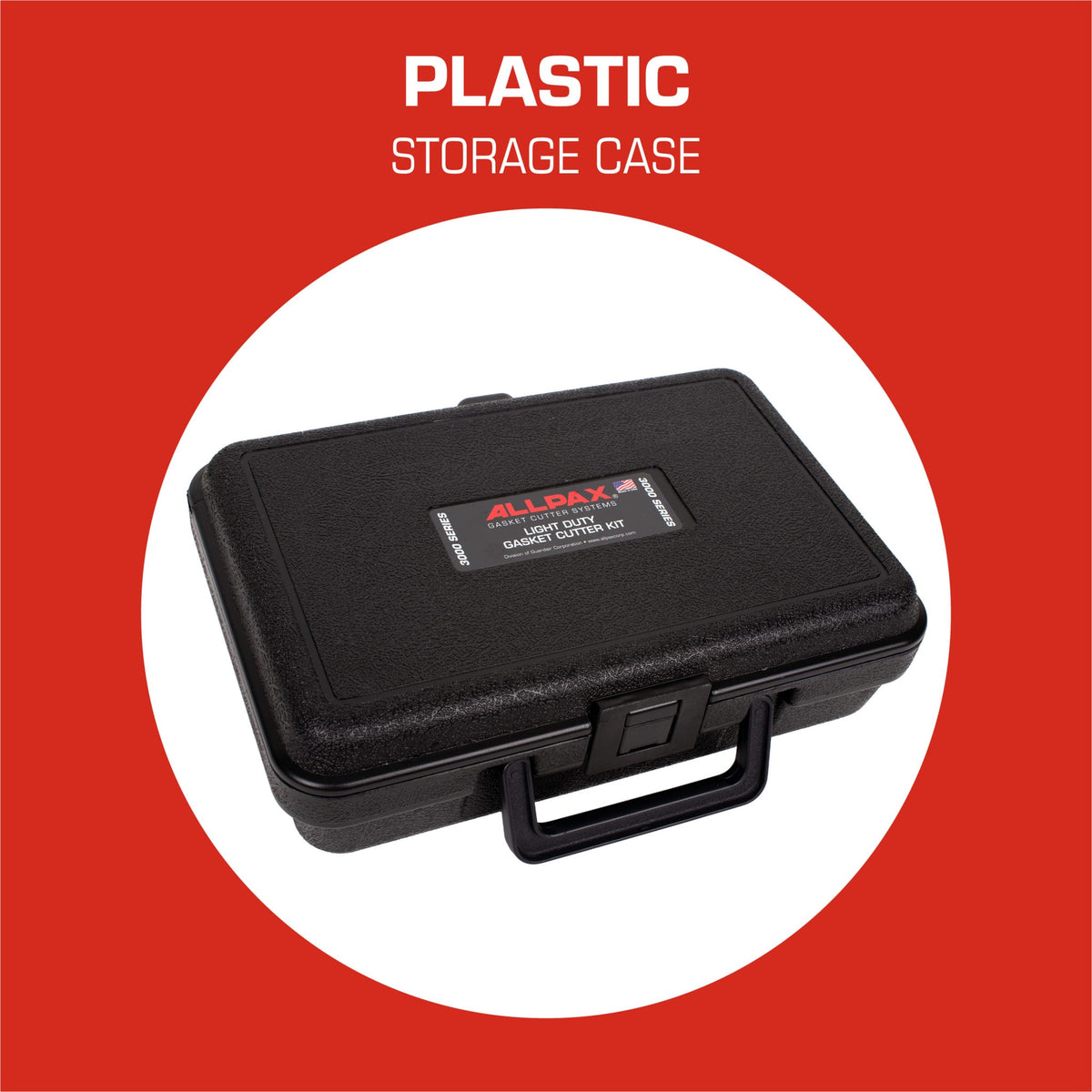

- Plastic storage case
Regular price
$282.26
Regular price
Sale price
$282.26
Unit price
per
Quantity
Couldn't load pickup availability
×
Overview

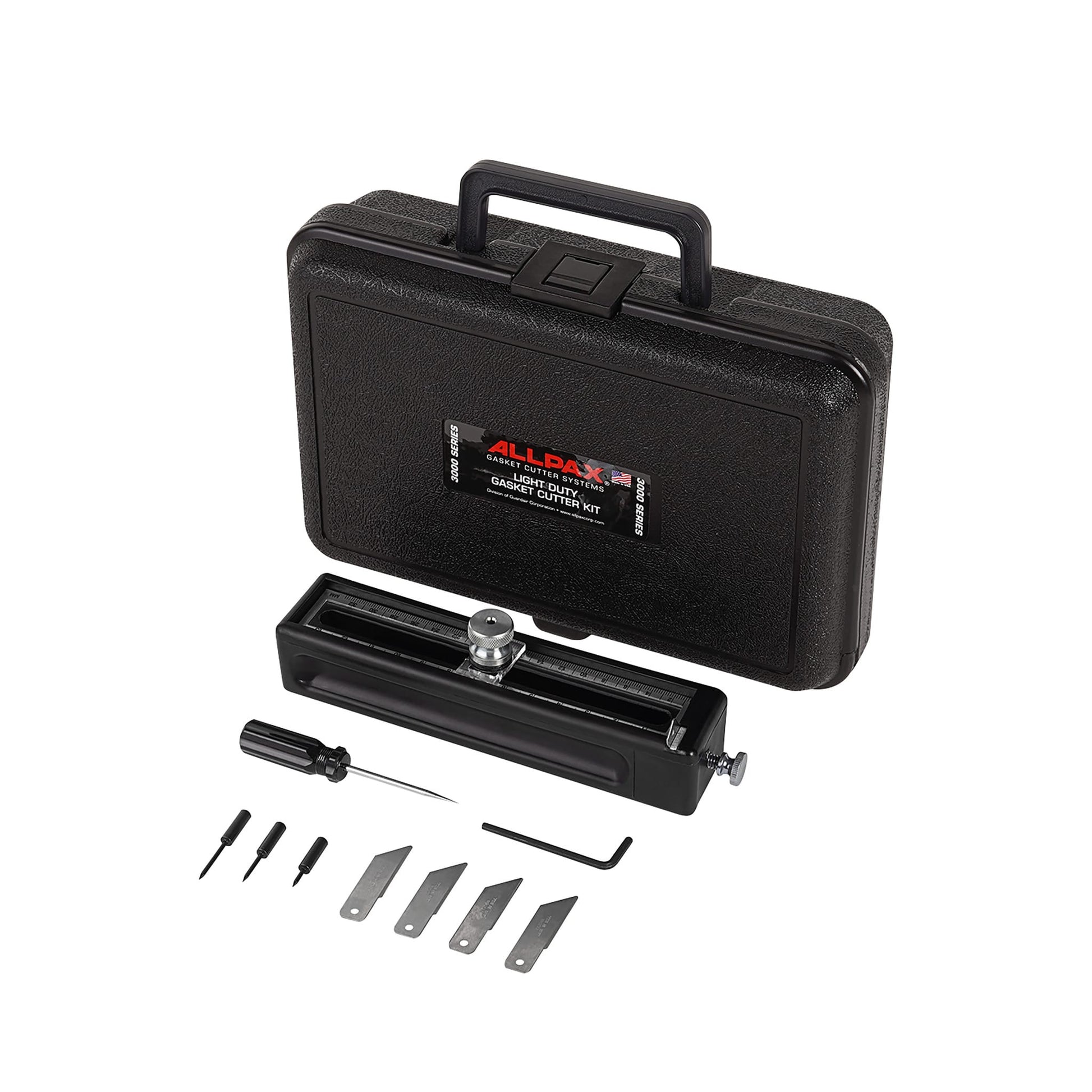

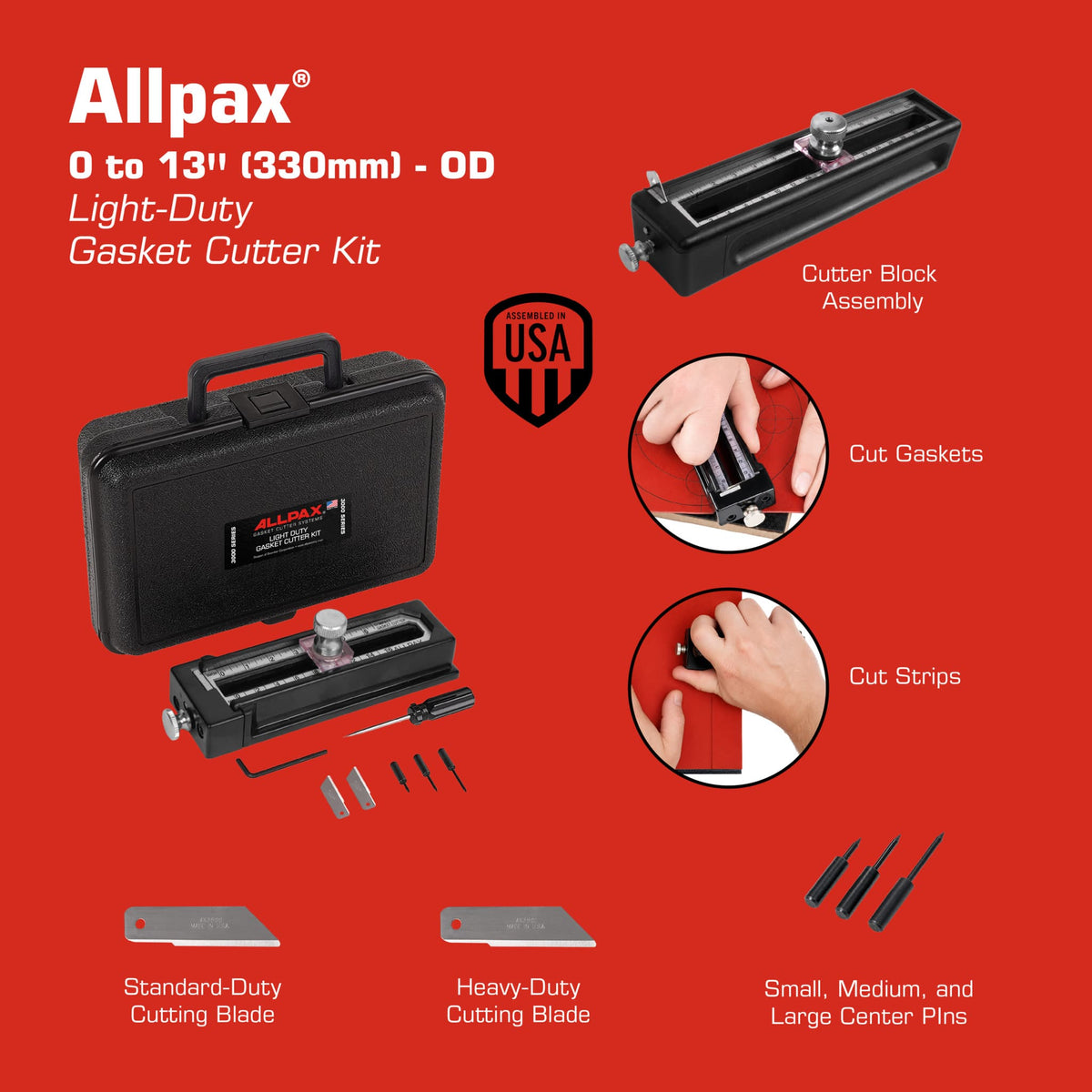

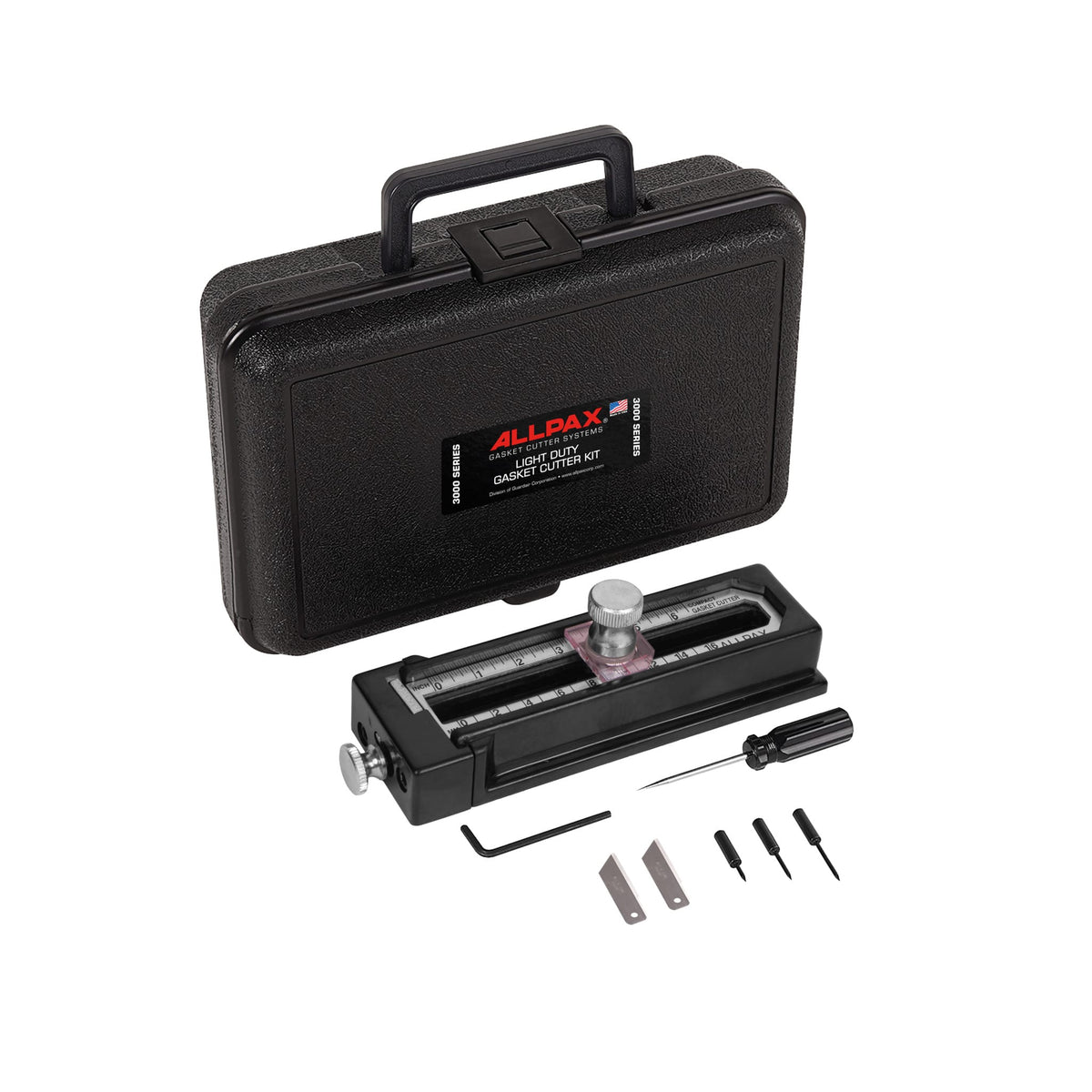

Extension-style kit features plastic cutter block with dual (inch/metric) cutting indicator. Sliding, knurled nut adjusts cutting radius. Provides for cuts 1" (25mm) up to 13" (330mm) in diameter. Thumbscrew sets cutting blade depth up to ¾”. Includes plastic storage case.
Resources
Collapsible content
Features
- Plastic cutter block
- Standard-Duty and Heavy-Duty cutting blades
- Plastic storage case
- Assembled in USA
Includes

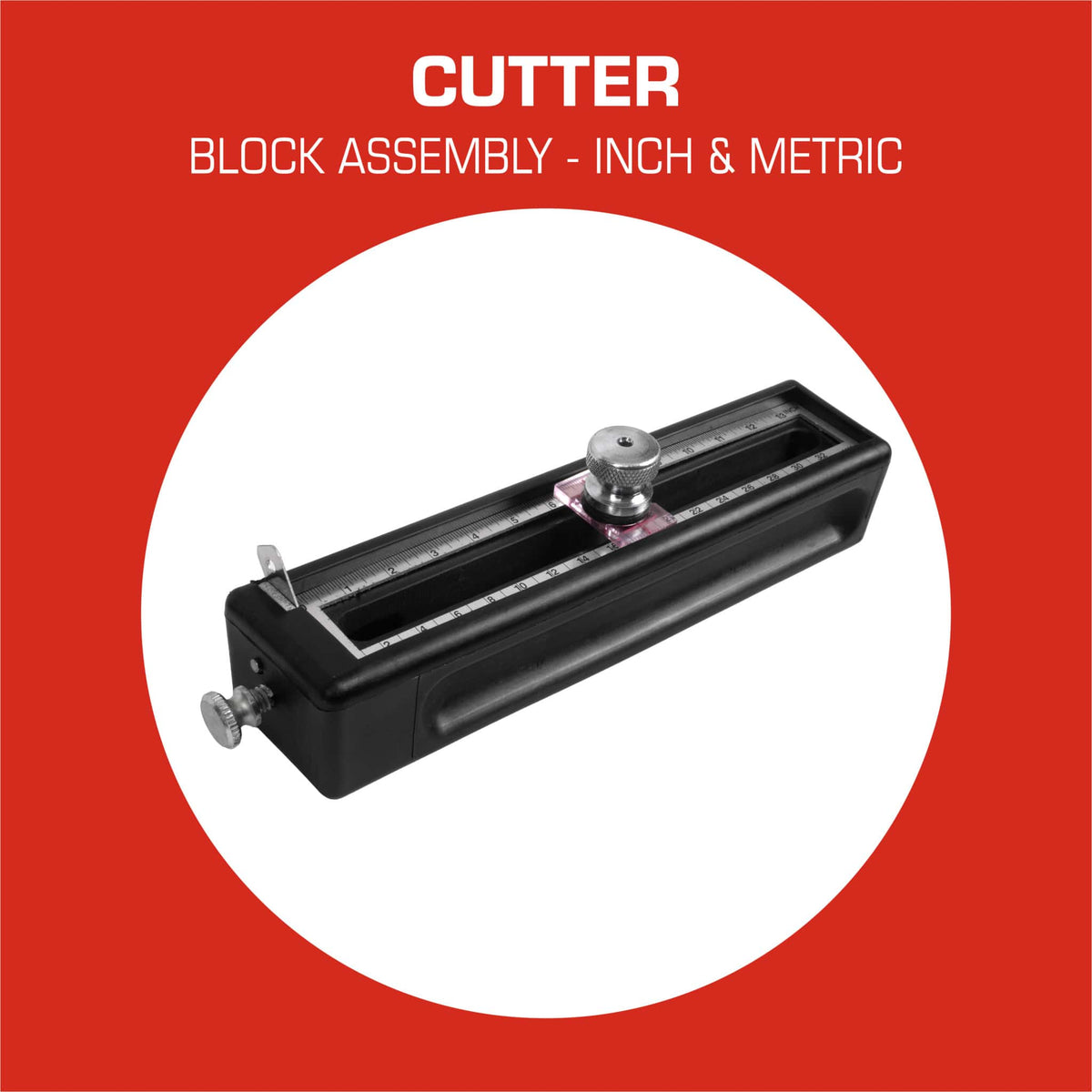

- (1) Plastic Cutter Block Assembly
- (1) Standard Blade
- (1) Heavy-Duty Blade

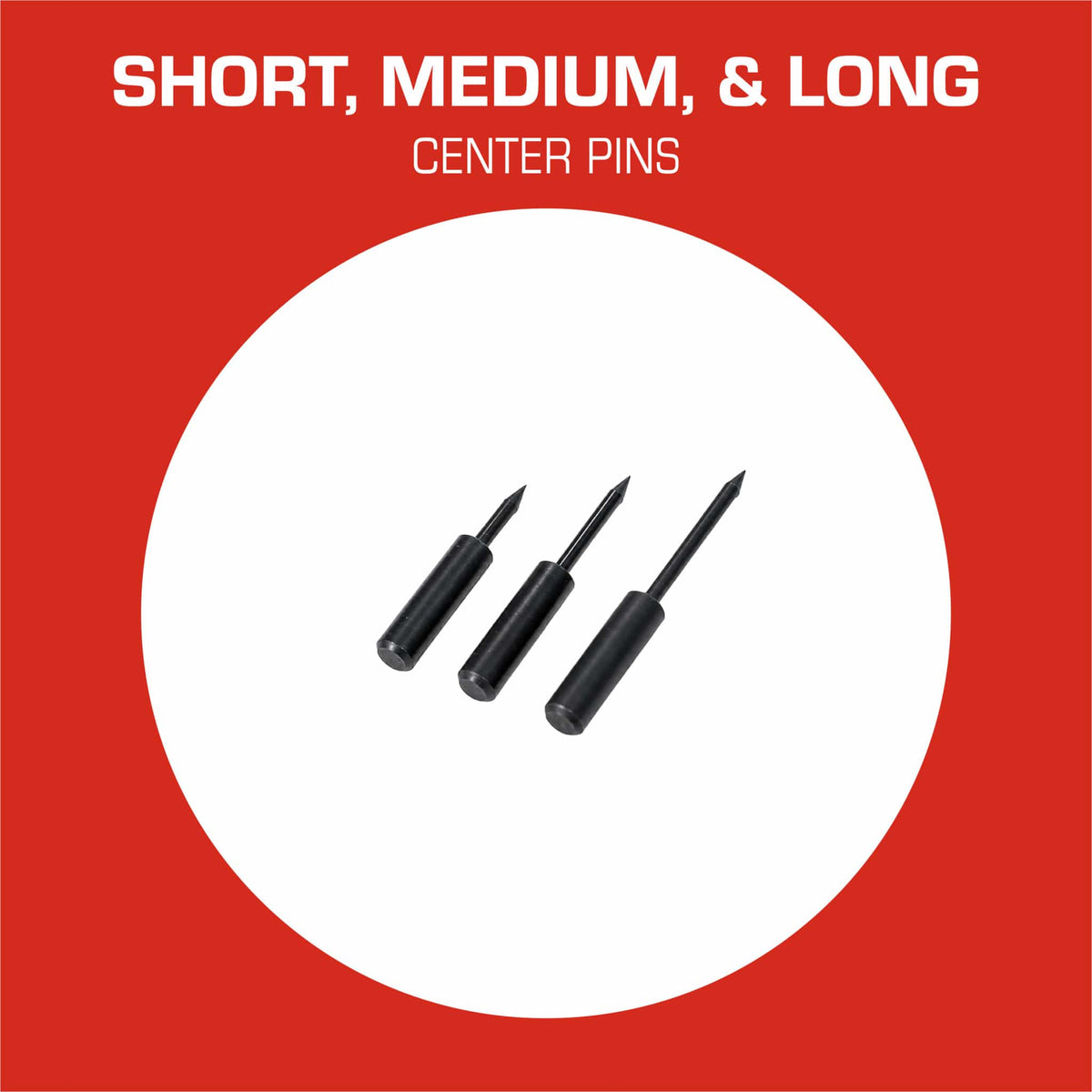

- (1) Short Center Pin
- (1) Medium Center Pin
- (1) Long Center Pin
- (1) Piercing Tool
- (1) Pivot Post Assembly
- (1) Instructions
Typical Applications
Shipping & Returns
Lead time: . Eligible for free ground shipping on domestic orders of $149 or more.
Returnable within 30 days. Must be in factory mint condition and is subject to a 25% restocking charge.
Read the full Shipping & Return policy here.
⚠️ WARNING: Cancer and Reproductive Harm - P65warnings.ca.gov
Warranty
Limited Warranty – One Year Warranty Period. See more details.
Collapsible content
How do extension-style gasket cutters work?

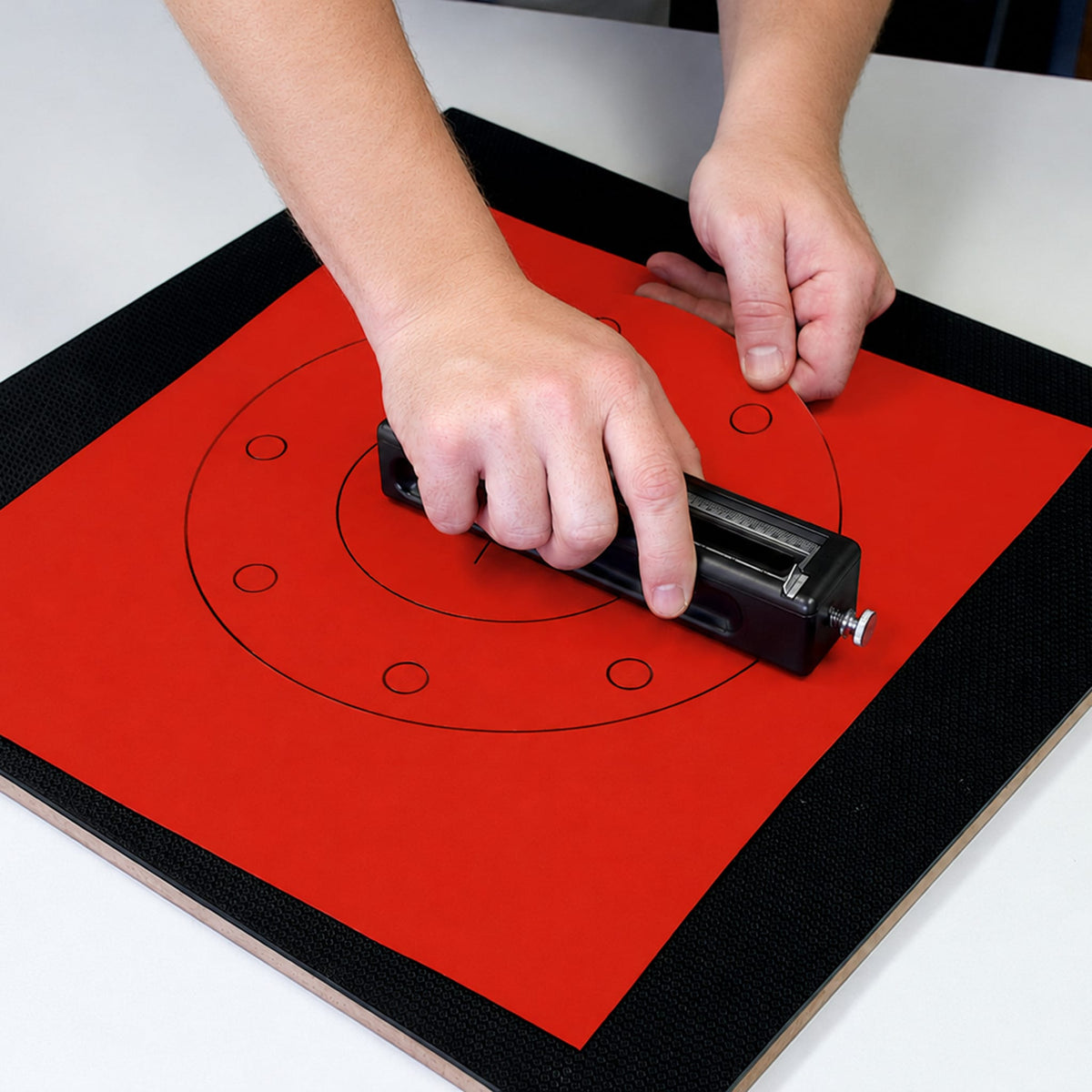

Extension-style gasket cutters rotate around a center pin to cut precise circles. Place the gasket material on a suitable cutting surface, create a small center hole, and position the material over the center pin. Set the cutter to the desired outside diameter and rotate it around the pin to make the first cut. Then adjust it to the inside diameter and repeat the process to complete the gasket. Extension bars are used when cutting larger diameters. For detailed operating instructions, view our Instruction Guides.
What is the difference between Heavy-Duty Light-Duty, and Compact Gasket Cutters?
Heavy-Duty cutters feature a durable brass cutter block and offer the widest cutting range, making them a good choice for frequent use and larger gaskets. Light-Duty cutters provide a more economical option for standard gasket-cutting applications, with capacities up to 37 inches. Compact cutters are designed for smaller gaskets up to 6 inches and are easy to carry and use in the field.
What cutting ranges are available for Allpax Light-Duty Gasket Cutters?
Light-Duty kits are available with maximum outside-diameter capacities of 13, 25, or 37 inches (330, 635, or 940 mm). All models can cut diameters as small as 1 inch (25 mm) and include both inch and metric markings.
What materials can Allpax Light-Duty Gasket Cutters cut?
Light-Duty Gasket Cutters are designed for non-rigid, non-metallic gasket materials such as rubber, fiberglass, and cork.
How thick of a gasket material can the Light-Duty Gasket Cutter cut?
The Light-Duty Gasket Cutter has a maximum cutting depth of 3/4 inch, or 19 mm. Thick or hard-to-cut materials may require several shallow passes or cutting partway through from each side.
