SM4 Bottom Shaft Rebuild Kit

SM4 Bottom Shaft Rebuild Kit

Part Number: AX1499

  • SM4 Bottom Shaft Rebuild Kit Parts & Accessories Allpax
1 1
$587.31 USD
$587.31 USD
Sale Sold out

Mechanical components and hardware to rebuild the bottom cutting shaft of SM4 Rotary-Style Gasket Cutters.

Click to see Replacement Parts & Accessories

Click to see Schematic for Replacement Parts & Accessories

View full details
  • Precision machined components
  • Durable steel materials
  • Made in USA

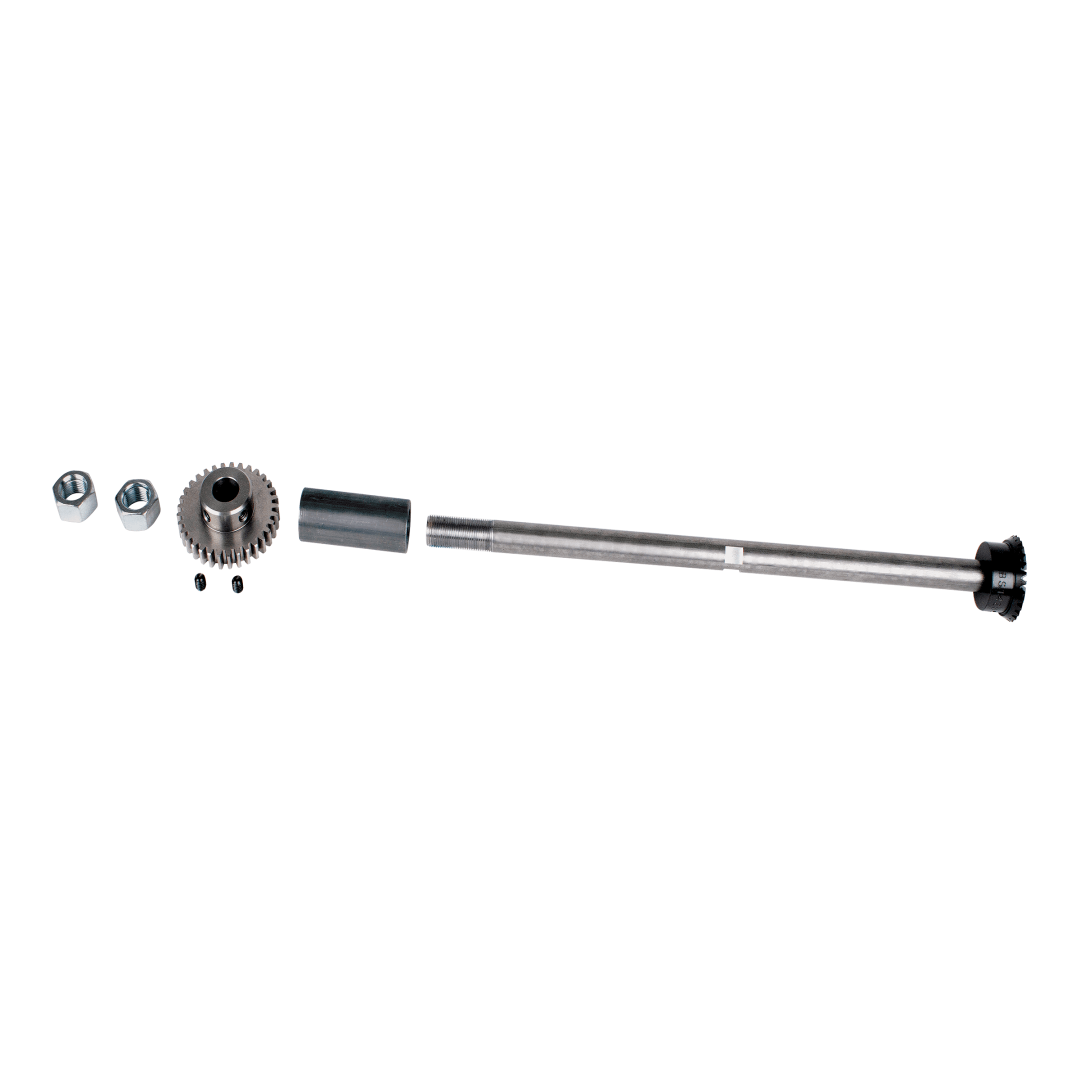

  • (1) Spur gear
  • (2) Set Screw
  • (1) Scale Bar Tee Screw
  • (2) 3/4-16 Hex Nut
  • (1) Bottom Shaft with Bevel Gear
  • (1) Spacer
    • Precision machined components
    • Durable steel materials
    • Made in USA
  • (1) Spur gear
  • (2) Set Screw
  • (1) Scale Bar Tee Screw
  • (2) 3/4-16 Hex Nut
  • (1) Bottom Shaft with Bevel Gear
  • (1) Spacer
    • Part Number Dimensions
    (L" x W" x H")     		Weight (lbs)
    Part Number AX1499 Dimensions
    (L" x W" x H")     17.2 X 3 X 3     		Weight (lbs) 4.5
    Lead Time: 12 Days
