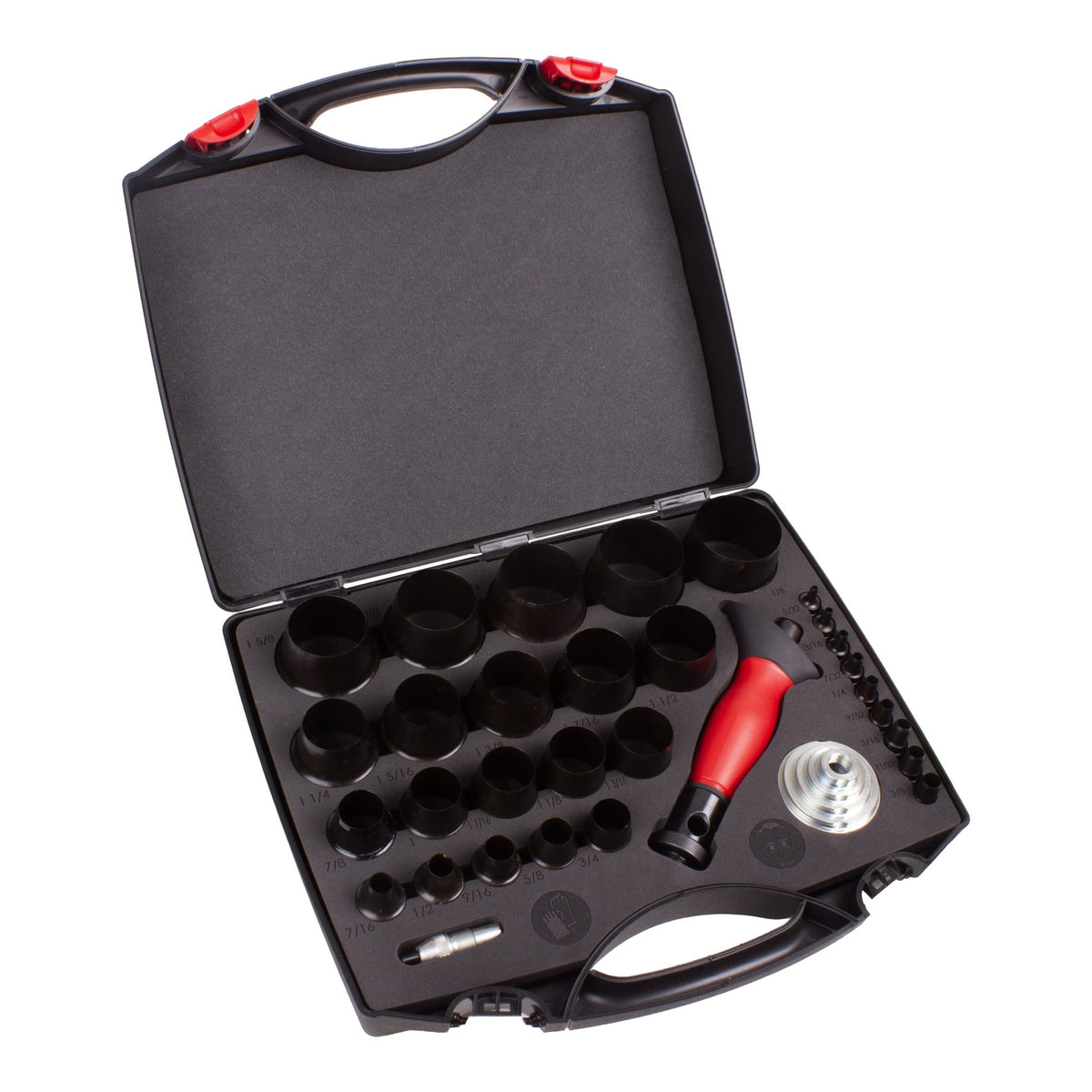

Hollow Punch Kit - 32 Piece

Part Number: AX1302

Patented locking system
Unique design
Hardened steel cutting heads

$889.13

Bestseller

Product variants

Save 20% with code SUMMER20 through August 28.

View full details

Overview

Quickly and easily punch precision bolt holes in flange gaskets. Select the desired diameter cutting head (1/8” to 2” standard), mount on handle, position on gasket material, and strike! Patented locking system allows rapid interchange of cutting heads. Unique design punches single diameter holes (bolt holes) as well as dual diameter rings (washers) in one operation. Hardened steel cutting heads stay sharp. Available in 11 piece, 16 piece and 32 piece kits.

Click to see more information on what's included within each kit.

Resources

Sell Sheet

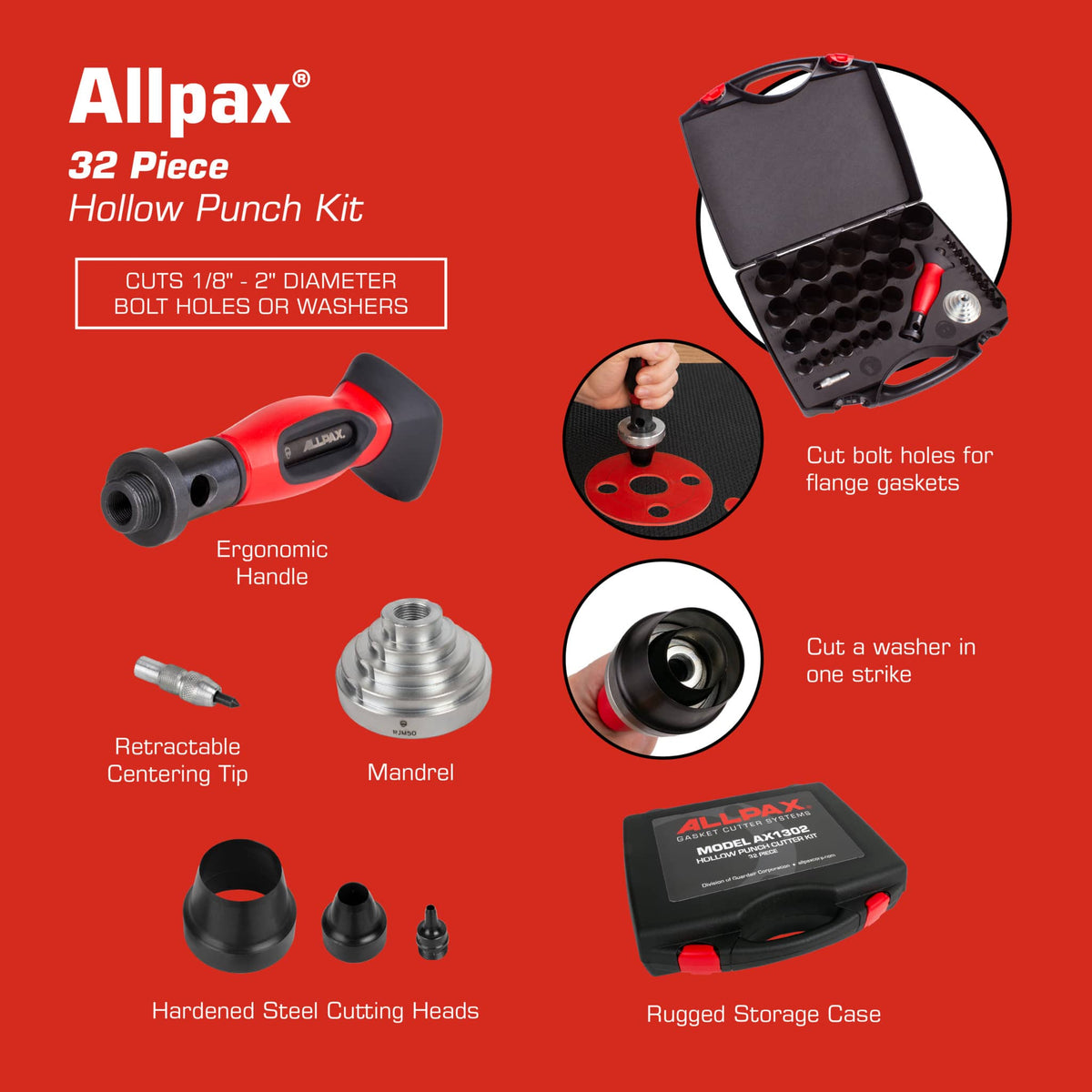

Features

Patented locking system
Unique design
Hardened steel cutting heads

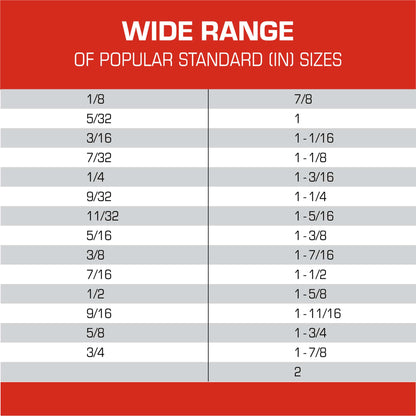

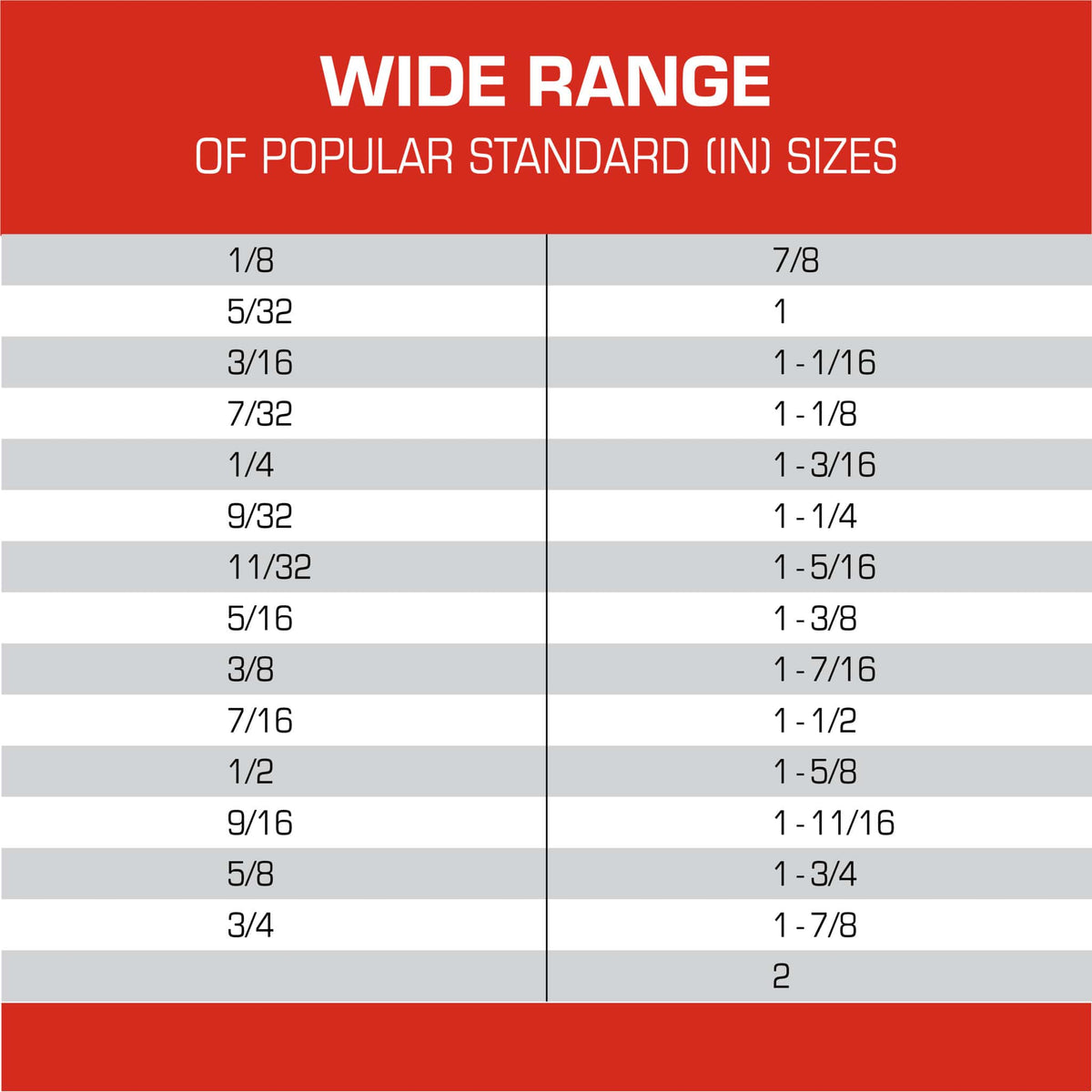

Includes

(1) 1/8" Hollow Punch Cutting Head
(1) 5/32" Hollow Punch Cutting Head
(1) 3/16" Hollow Punch Cutting Head
(1) 7/32" Hollow Punch Cutting Head
(1) 1/4" Hollow Punch Cutting Head
(1) 9/32" Hollow Punch Cutting Head
(1) 5/16" Hollow Punch Cutting Head
(1) 11/32" Hollow Punch Cutting Head
(1) 3/8" Hollow Punch Cutting Head
(1) 7/16" Hollow Punch Cutting Head
(1) 1/2" Hollow Punch Cutting Head
(1) 9/16" Hollow Punch Cutting Head
(1) 5/8" Hollow Punch Cutting Head
(1) 3/4" Hollow Punch Cutting Head
(1) 7/8" Hollow Punch Cutting Head
(1) 1" Hollow Punch Cutting Head
(1) 1-1/16" Hollow Punch Cutting Head
(1) 1-1/8" Hollow Punch Cutting Head
(1) 1-3/16" Hollow Punch Cutting Head
(1) 1-1/4" Hollow Punch Cutting Head
(1) 1-5/16" Hollow Punch Cutting Head
(1) 1-3/8" Hollow Punch Cutting Head
(1) 1-7/16" Hollow Punch Cutting Head
(1) 1-1/2" Hollow Punch Cutting Head
(1) 1-5/8" Hollow Punch Cutting Head
(1) 1-11/16" Hollow Punch Cutting Head
(1) 1-3/4" Hollow Punch Cutting Head
(1) 1-7/8" Hollow Punch Cutting Head
(1) 2" Hollow Punch Cutting Head
(1) Retractable Centering Tip
(1) Mandrel
(1) Handle
(1) Instructions

Typical Applications

Quickly and easily punch precision bolt holes in flange gaskets.

Shipping & Returns

Lead time: 5 Days. Eligible for free ground shipping on domestic orders of $149 or more.

Returnable within 30 days. Must be in factory mint condition and is subject to a 25% restocking charge.

Read the full Shipping & Return policy here.

Warranty

Limited Warranty – One Year Warranty Period. See more details.

What are Hollow Punch Kits used for?

Hollow Punch Kits are used to create clean, accurate holes in gasket materials for bolt holes and other circular openings. They are ideal for making consistent holes in hand-fabricated gaskets.

What materials can Allpax Hollow Punches cut?

Allpax Hollow Punches are designed to cut a variety of gasket materials, including rubber, cork, leather, fiber, graphite, and other non-metallic sheet materials.

How do I use a Hollow Punch?

Place the gasket material on a suitable cutting surface, position the punch where the hole is needed, and strike the handle with a dead-blow hammer to cut the hole. For best results, use a firm, even blow and a surface that protects the cutting edge.

Part Number	Measurement System	Dimensions (L" x W" x H")	Weight (lbs)
AX1300	Inch	5.5 X 5 X 1.5	1.3
AX1301	Inch	9 X 7.3 X 1.8	2.5
AX1302	Inch	12.8 X 10.5 X 2	5.7
