Part Number: AX1855
- Padded rubber grip
- High-strength steel
- Assembled in USA
Regular price
$160.37
Regular price
Sale price
$160.37
Unit price
per
Bestseller
Quantity
Couldn't load pickup availability
×
Overview
Perfect for fabricating interlocking dove-tail joints when the outside diameter of the gasket is larger than the width of the material to be cut. No pre-measuring, marking or scoring required. Cut 3/4” to 3” wide flange gaskets with this 3 piece kit.
Resources
Collapsible content
Features
- Padded rubber grip
- High-strength steel
- Assembled in USA

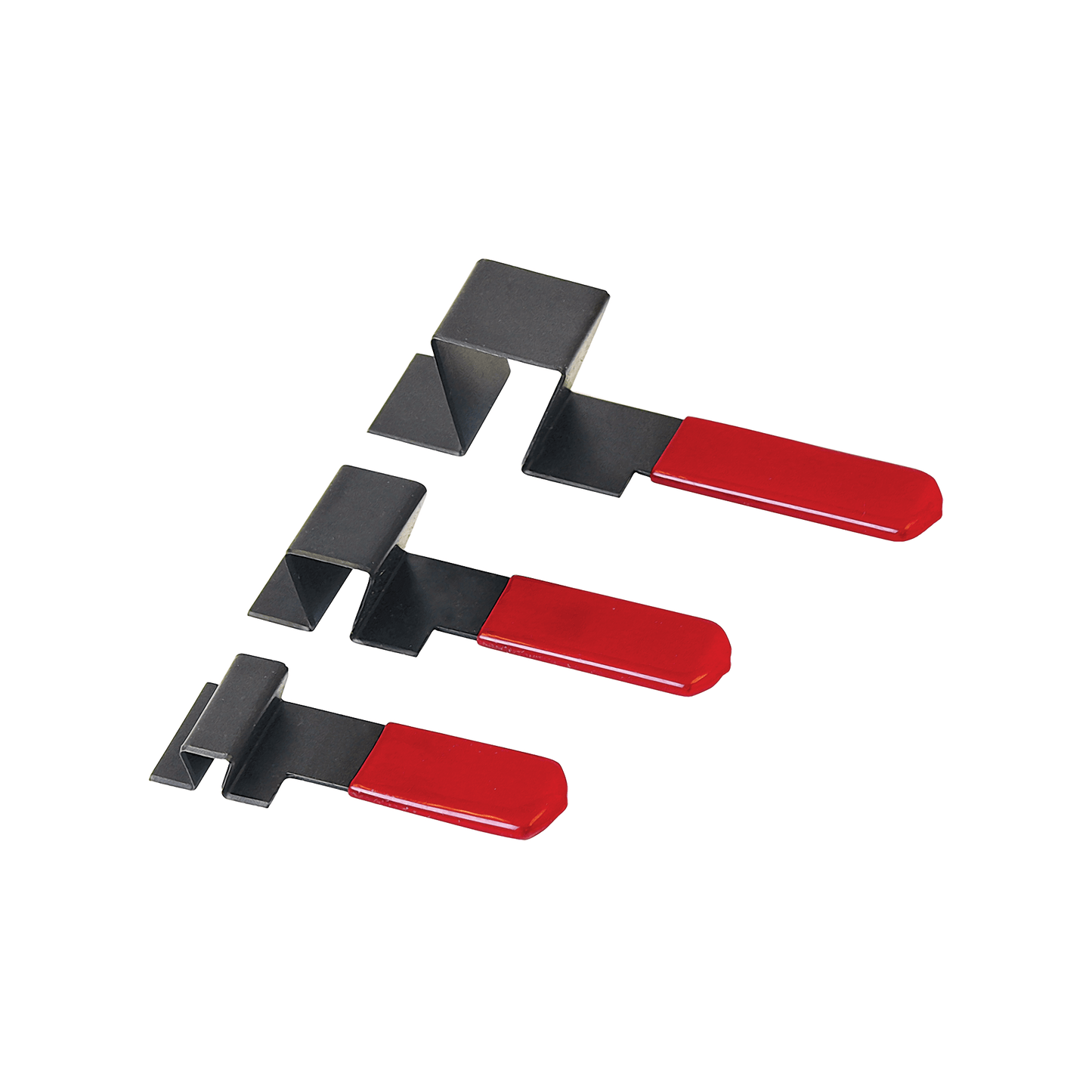

Includes
- (1) Dove-tail punch #1
- (1) Dove-tail punch #2
- (1) Dove-tail punch #3
- (1) Dove-tail punch guide
Typical Applications
Shipping & Returns
Lead time: . Eligible for free ground shipping on domestic orders of $149 or more.
Returnable within 30 days. Must be in factory mint condition and is subject to a 25% restocking charge.
Read the full Shipping & Return policy here.
⚠️ WARNING: Cancer and Reproductive Harm - P65warnings.ca.gov
Warranty
Limited Warranty – One Year Warranty Period. See more details.
Collapsible content
What is the Dovetail Punch Kit used for?
The Dovetail Punch Kit creates interlocking joints between sections of gasket material. It is ideal when a gasket is larger than the available sheet material and must be assembled from multiple pieces.
Which Dovetail Punch size should I use?
Choose a punch with a cutting width slightly wider than the gasket face. The kit includes three punch sizes for different gasket widths. Refer to the Instruction Guide for the dimensions and recommended applications for each punch.
What tools do I need to use the Dovetail Punch Kit?

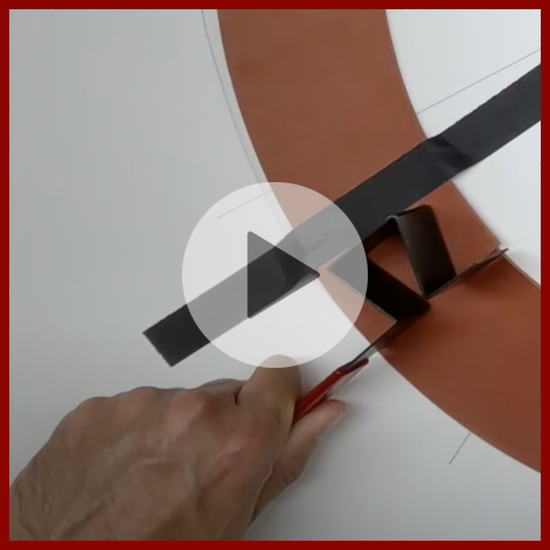

Use the punches on a suitable cutting surface with a dead-blow hammer. Depending on the material, a utility knife may be needed to finish the cut.
What is the difference between the Dovetail Punch Kit and the Dovetail Designer Template?
The Dovetail Punch Kit physically cuts preset dovetail joints using a hammer. The Dovetail Designer is a template used to trace dovetail patterns that are then cut by hand with a utility knife.
