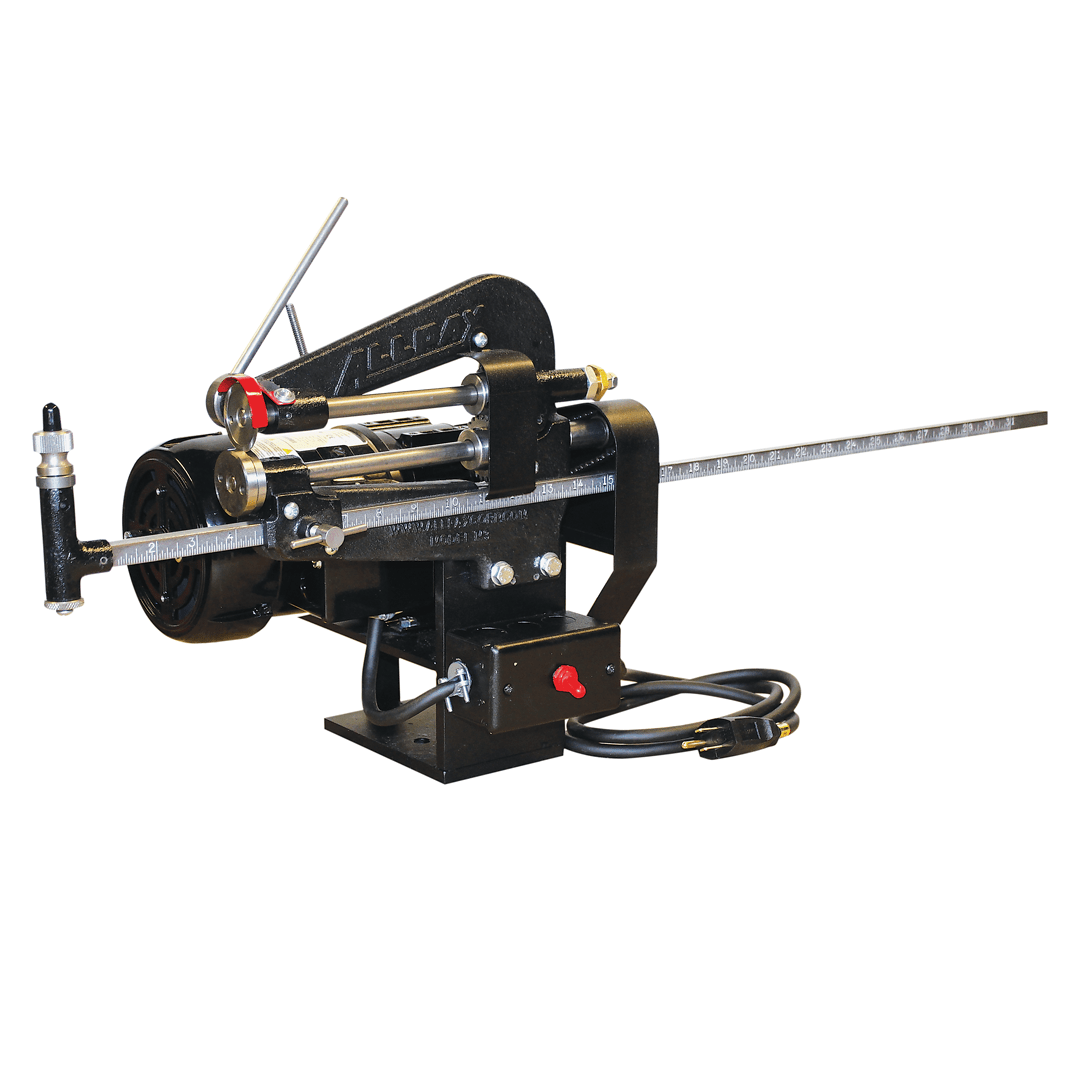

Motorized M3 Rotary-Style Gasket Cutter - Metric

Part Number: AX7250

AX7250

  • Metric (AX7250)
  • Standard (AX7200)
  • Standard 220 Volt (AX7220)
  • Metric 220 Volt (AX7270)
1 4
$4,155.52
$4,155.52
Sale Sold out

Cut accurate flange and ring gaskets with the Motorized M3 Rotary-Style Gasket Cutter. Perfect tool for fabricating multiple runs of the same-size gaskets quickly and efficiently. Designed primarily for non-metallic gasket materials such as cork, fiber, and rubber, up to ¼" thick. Cuts gaskets with a face width of ¼" to 7"; from 2" I.D. to 62" O.D. Mounts to any workbench with ¼" bolts (not included).

Parts & Accessories
Click to see List
Click to see Schematic

View full details
  • Heavy-duty, cast iron frame with 7" throat
  • Precision steel components
  • Durable, heat-treated tool steel, rotary cutting discs
  • 1/6 Horsepower gear motor; 120 VAC
  • Made in USA
  • Heavy-duty, cast iron frame with 7" throat
  • Precision steel components
  • Durable, heat-treated tool steel, rotary cutting discs
  • Made in USA
  • Heavy-duty, cast iron frame with 7" throat
  • Precision steel components
  • Durable, heat-treated tool steel, rotary cutting discs
  • Made in USA
  • Heavy-duty, cast iron frame with 7" throat
  • Precision steel components
  • Durable, heat-treated tool steel, rotary cutting discs
  • Made in USA
  • (1) Motorized M3 Rotary-Style Gasket Cutter
  • (1) Operations Manual
  • (1) Hole Punch 11/32"
  • (1) Motorized M3 Rotary-Style Gasket Cutter
  • (1) Operations Manual
  • (1) Hole Punch 11/32"
  • (1) Motorized M3 Rotary-Style Gasket Cutter
  • (1) Operations Manual
  • (1) Hole Punch 11/32"
  • (1) Motorized M3 Rotary-Style Gasket Cutter
  • (1) Operations Manual
  • (1) Hole Punch 11/32"
    • Heavy-duty, cast iron frame with 7" throat
    • Precision steel components
    • Durable, heat-treated tool steel, rotary cutting discs
    • Made in USA
  • (1) Motorized M3 Rotary-Style Gasket Cutter
  • (1) Operations Manual
  • (1) Hole Punch 11/32"
    • Part NumberDimensions
    (L" x W" x H")    		Weight (lbs)
    Part Number AX7200 Dimensions
    (L" x W" x H")     34.0 x 12.0 x 15.0     		Weight (lbs) 41.4
    Part Number AX7220 Dimensions
    (L" x W" x H")     34.0 x 12.0 x 15.0     		Weight (lbs) 41.4
    Part Number AX7250 Dimensions
    (L" x W" x H")     34.0 x 12.0 x 15.0     		Weight (lbs) 41.4
    Part Number AX7270 Dimensions
    (L" x W" x H")         		Weight (lbs)
